KMA Series

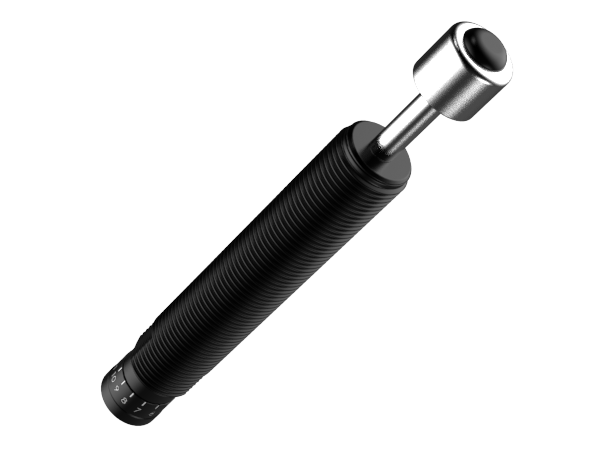

KMA Series Adjustable Type
KMA Series
Mini Adjustable type Absorber
Body Thread Size : 10, 12, 14, 16, 20, 25, 27, 36
Body Thread Size : 10, 12, 14, 16, 20, 25, 27, 36
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
 |
KMA08-06(B) | 6 | 3 | 4,800 | 0.55 - 65 | M8X1.0P |
 |
KMA10-07(B) | 7 | 5.5 | 15,000 | 1 - 123 | M10X1.0P |
 |
KMA12-14(B) | 14 | 21.5 | 35,000 | 4 - 477 | M12X1.0P |
 |
KMA14-12(B) | 12 | 21.5 | 45,000 | 1.5 - 494 | M14X1.5P |
 |
KMA14-12(B)LV | 12 | 21.5 | 45,000 | 25.4 - 1,650 | M14X1.5P |
 |
KMA16-12(B) | 12 | 27 | 51,000 | 2 - 527 | M16X1.5P |
 |
KMA16-12(B)LV | 12 | 27 | 51,000 | 31.9 - 3,375 | M16X1.5P |
 |
KMA20-16(B) | 16 | 61 | 63,000 | 4.5 - 1,230 | M20X1.5P |
 |
KMA20-16(B)LV | 16 | 61 | 63,000 | 72.1 - 5,600 | M20X1.5P |
 |
KMA25-25(B) | 25 | 177 | 113,000 | 8.3 - 2,150 | M25X1.5P |
 |
KMA25-25(B)LV | 25 | 177 | 113,000 | 209.4 - 15,750 | M25X1.5P |
 |
KMA27-25(B) | 25 | 177 | 113,000 | 8.3 - 2,150 | M27X3.0P |
 |
KMA27-25(F)(B) | 25 | 177 | 113,000 | 8.3 - 2,150 | M27X1.5P |
 |
KMA27-25(F)(B)LV | 25 | 177 | 113,000 | 209.4 - 15,750 | M27X1.5P |
 |
KMA27-40(B) | 40 | 283 | 149,000 | 20 - 5,120 | M27X2.0P |
 |
KMA27-40(B)LV | 40 | 283 | 149,000 | 334.9 - 25,200 | M27X2.0P |
 |
KMA30-35(B) | 35 | 356 | 137,000 | 25 - 6,950 | M30X1.5P |
 |
KMA33-25(B) | 25 | 314 | 120,000 | 25 - 6,980 | M33X1.5P |
 |
KMA33-25(B)LV | 25 | 314 | 120,000 | 97 - 60,930 | M33X1.5P |
 |
KMA33-50(B) | 50 | 628 | 150,000 | 50 - 14,000 | M33X1.5P |
 |
KMA33-50(B)LV | 50 | 628 | 150,000 | 192 - 120,312 | M33X1.5P |
 |
KMA36-25(B) | 25 | 346 | 125,000 | 25 - 6,980 | M36X1.5P |
 |
KMA36-25(B)LV | 25 | 346 | 125,000 | 97 - 60,930 | M36X1.5P |
 |
KMA36-50(B) | 50 | 692 | 160,000 | 50 - 14,000 | M36X1.5P |
 |
KMA36-50(B)LV | 50 | 692 | 160,000 | 192 - 120,312 | M36X1.5P |
