KMS Series

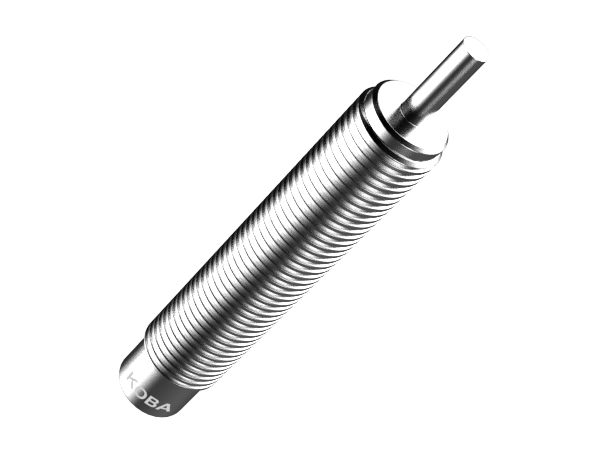

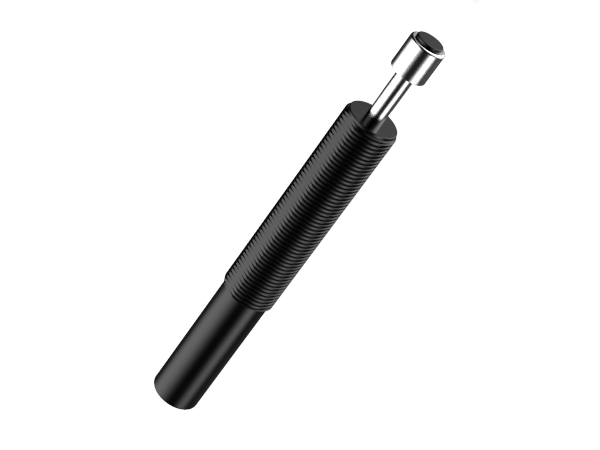

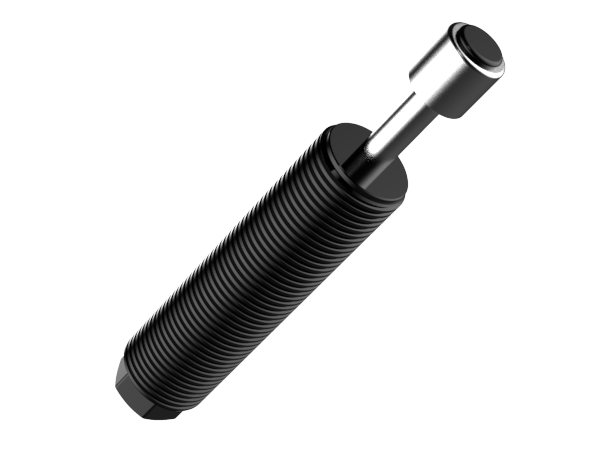

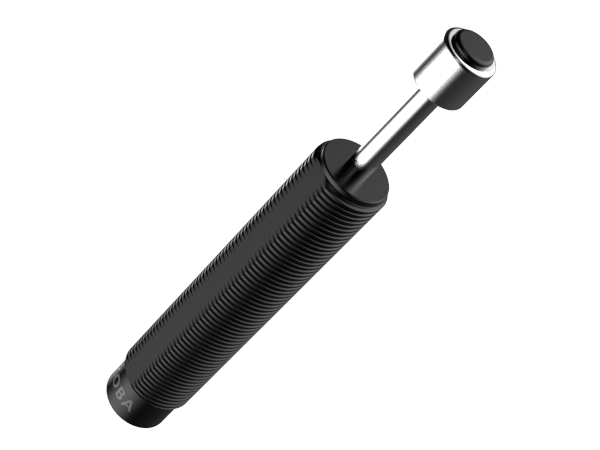

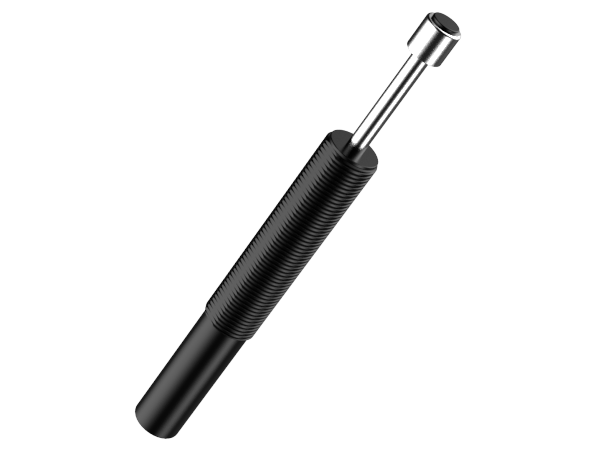

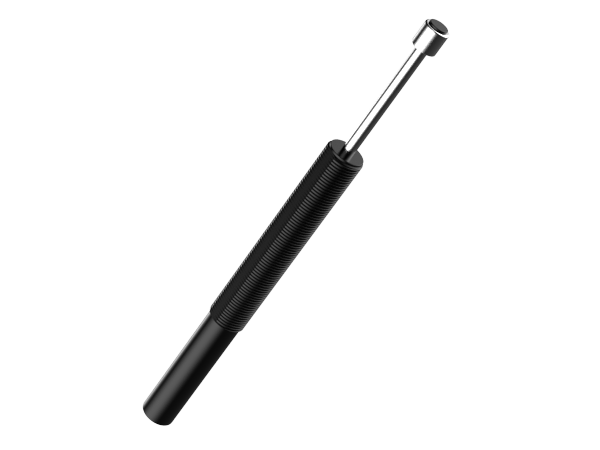

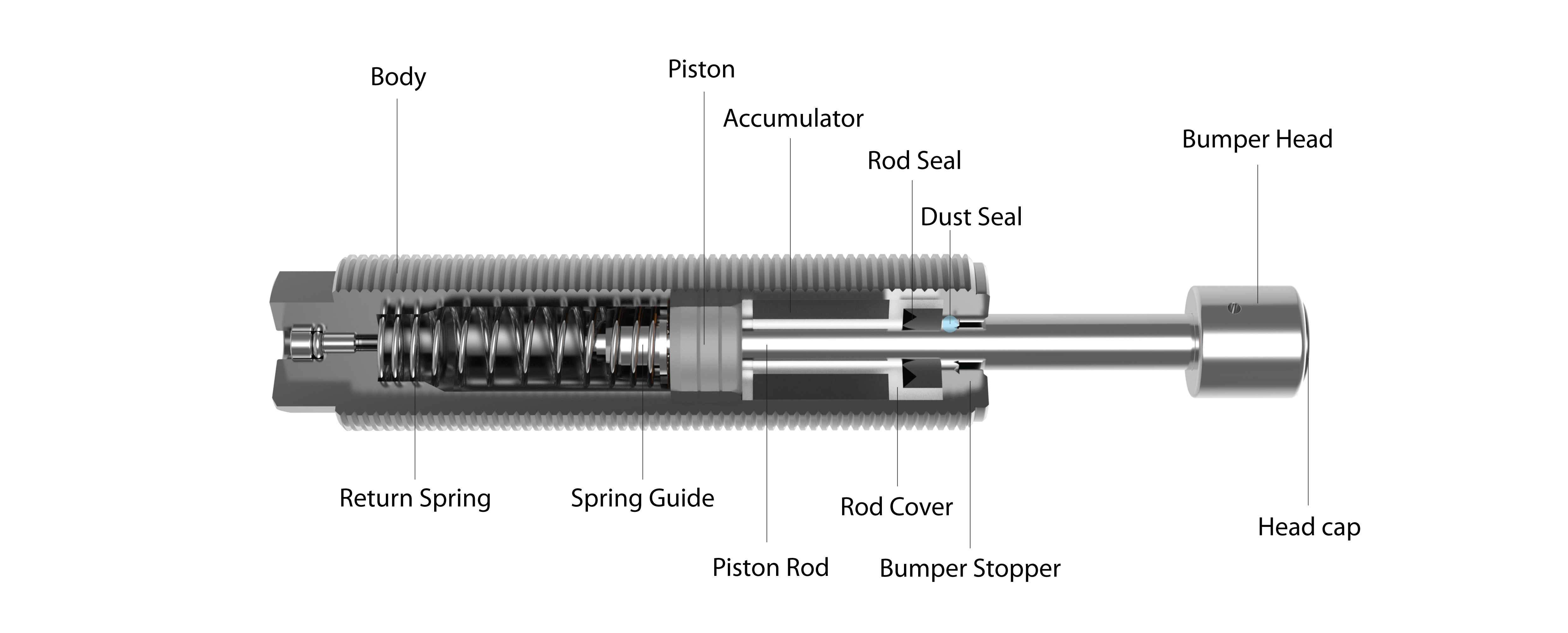

KMS Self-compensating Absorber
Overview
The KMS Series is a self-adjusting type shock absorber designed with a multiple-orifice structure that gradually and smoothly absorbs impact from colliding objects.
The inner tube adopts an oil lock mechanism, and the bumper head prevents the bottom-out phenomenon during impact. The bumper head can also be used instead of a stop collar, so a separate stop collar is not required.
The threaded body structure allows easy installation and position adjustment, and the piston rod is treated with hard chrome plating, providing excellent wear resistance, protecting the seal, and ensuring long service life.
Features
Self-Compensating Structure (Self-Adjusting Type)
Through the internal Slot Metering design, the damping force is automatically adjusted according to various load conditions without any manual setting, providing stable deceleration performance.
High Energy Absorption Performance
With an expanded piston area and increased oil capacity, it provides energy absorption capability 2 to 3 times higher than conventional models and supports a wide Effective Weight range.
Integrated Body Structure (Bottom-Out Prevention)
The robust integrated body design minimizes the Bottom-Out phenomenon that may occur during impact and maintains stable performance.
Easy Installation and Heat Dissipation Structure
The threaded body structure allows easy installation, and the increased surface area design improves heat dissipation performance.
Excellent Durability
A wear-resistant piston rod and high-quality seals are applied to ensure long-term stable operation even in repetitive impact environments.
Various Optional Configurations
Bumper Head options are available depending on impact conditions, enabling noise reduction and adaptability to different environments.
Applications
Industrial Robots | Packaging Machines | Machine Tools | Automotive Production Facilities | Semiconductor Manufacturing Equipment | Logistics and Conveyor Systems | Industrial Safety Devices

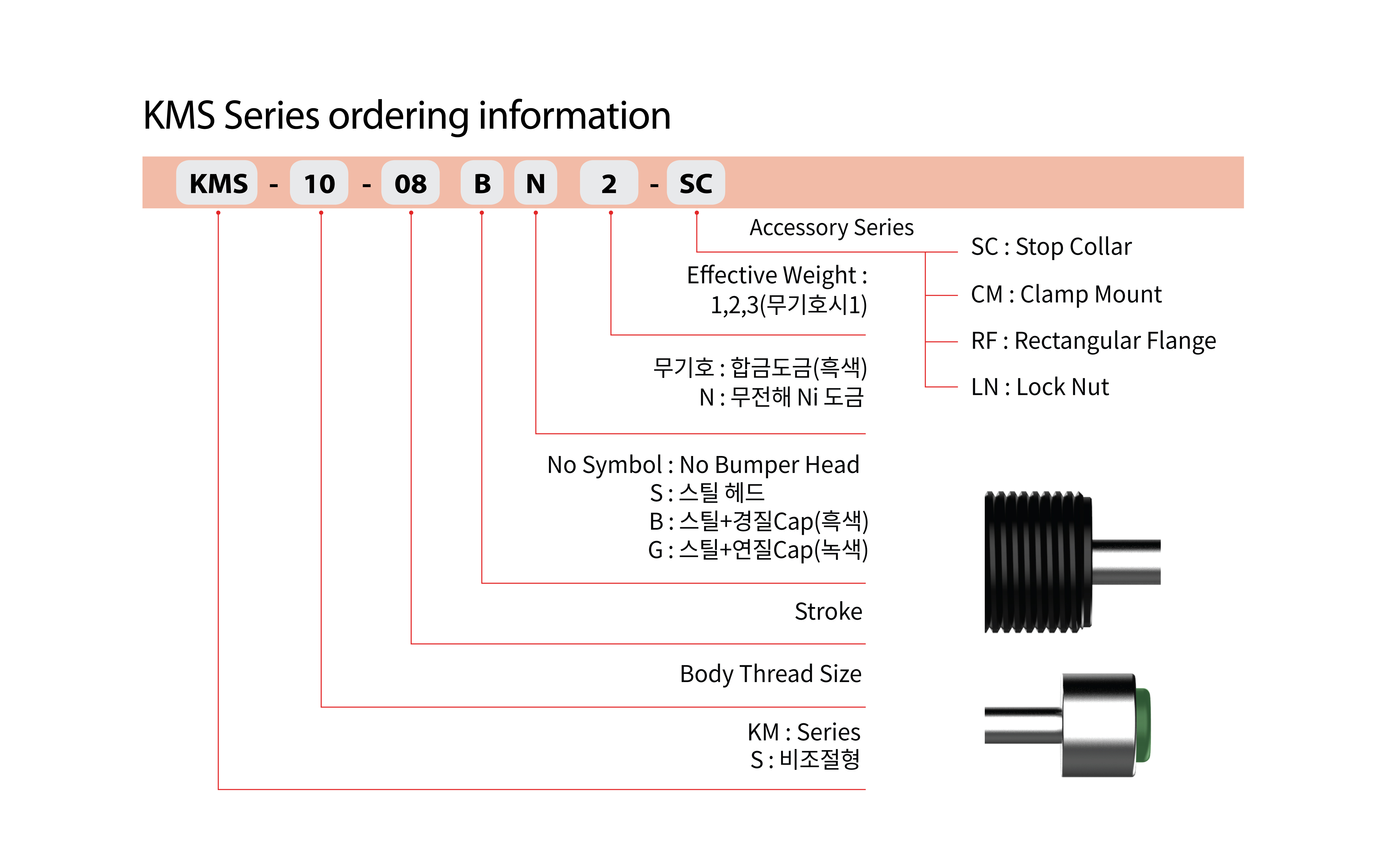

KMS Series Ordering Information
Model Series

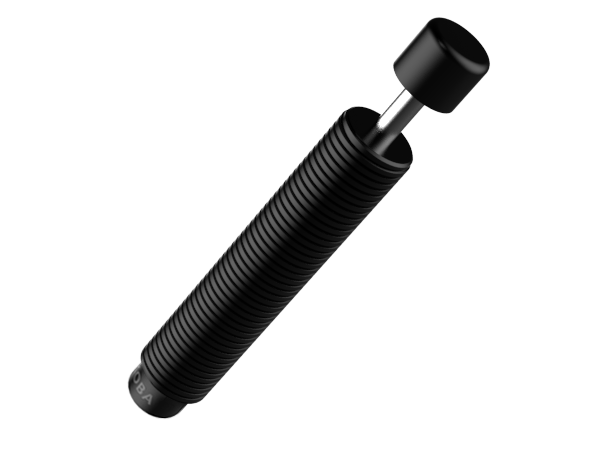

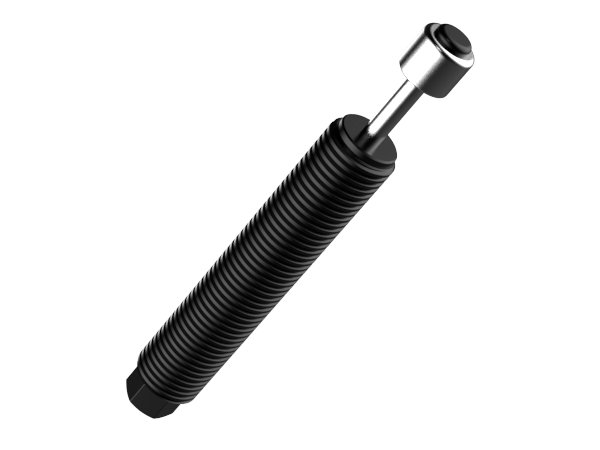

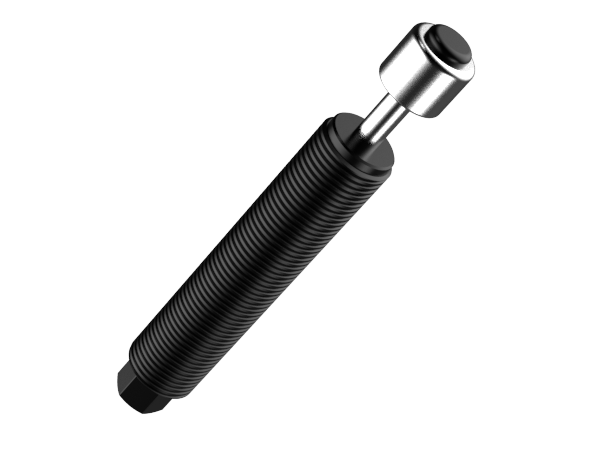

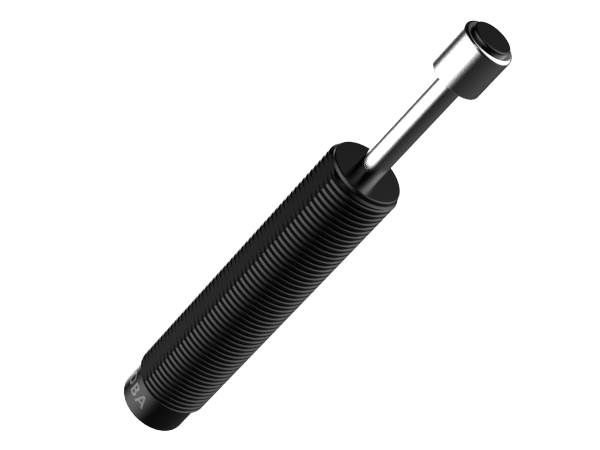

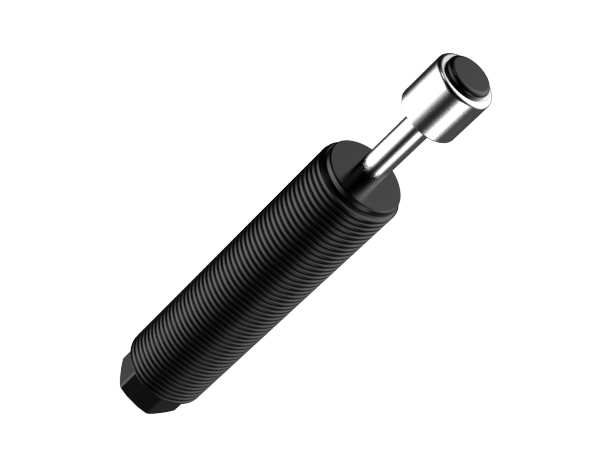

| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
|
KMS04-04 | 4 | 0.4 | 1,500 | 0.1 - 3.2 | M4X0.5P |
|
KMS05-05 | 5 | 0.6 | 1,800 | 0.1 - 5 | M5X0.5P |
|
KMS06-05 | 5 | 1 | 2,500 | 0.05 - 2.8 | M6X0.5P |
|
KMS08-06(B) | 6 | 5 | 8,000 | 0.8 - 111 | M8X1.0P |
|
KMS10-08(B) | 8 | 11 | 14,500 | 1.8 - 244 | M10X1.0P |
|
KMS12-10(B) | 10 | 18 | 34,000 | 2.9 - 400 | M12X1.0P |
|
KMS14-15(B) | 15 | 34 | 51,000 | 5 - 755 | M14X1.5P |
|
KMS14-15F(B) | 15 | 34 | 51,000 | 5 - 755 | M14X1.0P |
|
KMS20-20(B) | 20 | 105 | 55,000 | 13 - 333 | M20X1.5P |
|
KMS20-30(B) | 30 | 52 | 31,100 | 85 - 1,155 | M20X1.5P |
|
KMS20-50(B) | 50 | 82 | 37,800 | 13 - 1,822 | M20X1.5P |
|
KMS25-25(B) | 25 | 226 | 69,000 | 28 - 5,022 | M25X2.0P |
|
KMS25-25F(B) | 25 | 226 | 69,000 | 28 - 5,022 | M25X1.5P |
|
KMS25-40(B) | 40 | 110 | 37,500 | 18 - 2,444 | M25X2.0P |
|
KMS25-50(B) | 50 | 120 | 41,000 | 19 - 2,666 | M25X2.0P |
|
KMS25-80(B) | 80 | 160 | 54,200 | 26 - 3,555 | M25X2.0P |
|
KMS36-25(B) | 25 | 490 | 115,000 | 61 - 10,888 | M36X1.5P |
|
KMS36-50(B) | 50 | 220 | 162,000 | 35 - 4,888 | M36X1.5P |
|
KMS36-80(B) | 80 | 340 | 232,800 | 55 - 7,555 | M36X1.5P |
