KMA Series
KMA Series Adjustable Type
Overview

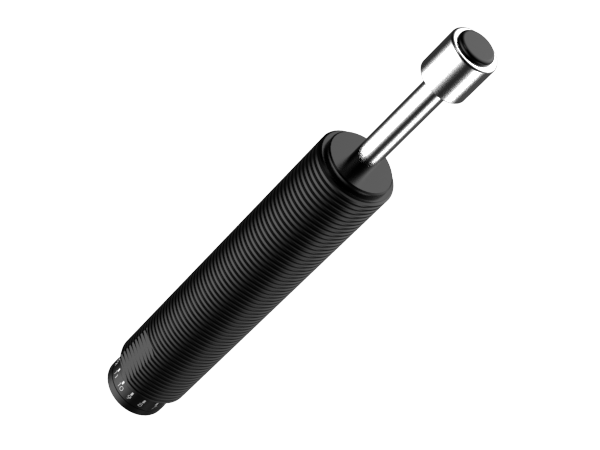

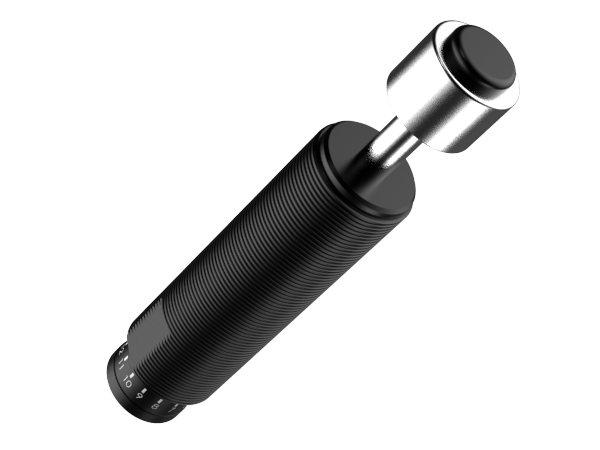

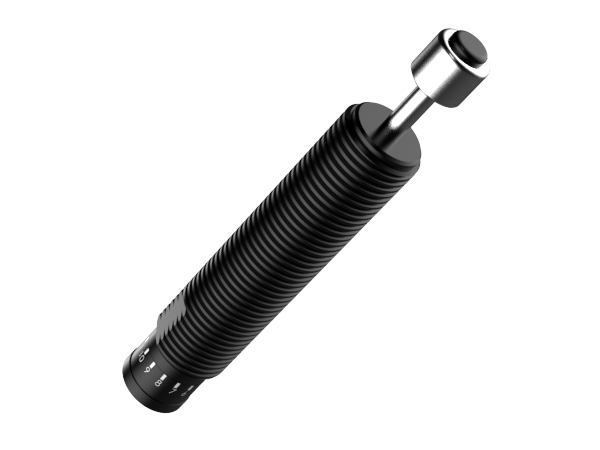

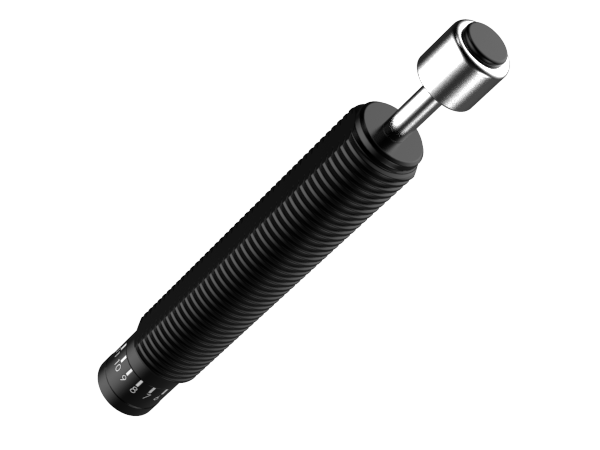

The KMA Series is an adjustable type shock absorber designed to control damping force according to impact conditions.
By adjusting the orifice area through the adjustment dial, the damping force can be finely tuned according to the impact velocity and load conditions. This allows the shock absorber to provide stable and efficient deceleration in various operating environments.
The integrated body structure ensures high durability and helps prevent the bottom-out phenomenon, enabling stable and reliable operation in industrial equipment.
Features
Adjustable Damping Force
The damping force can be adjusted according to impact velocity and load conditions using the adjustment dial.
Precise Adjustment Control
The dial adjustment mechanism allows fine tuning of the damping force for optimal performance.
High Energy Absorption Capacity
Improved piston design increases the energy absorption capacity and expands the effective weight range.

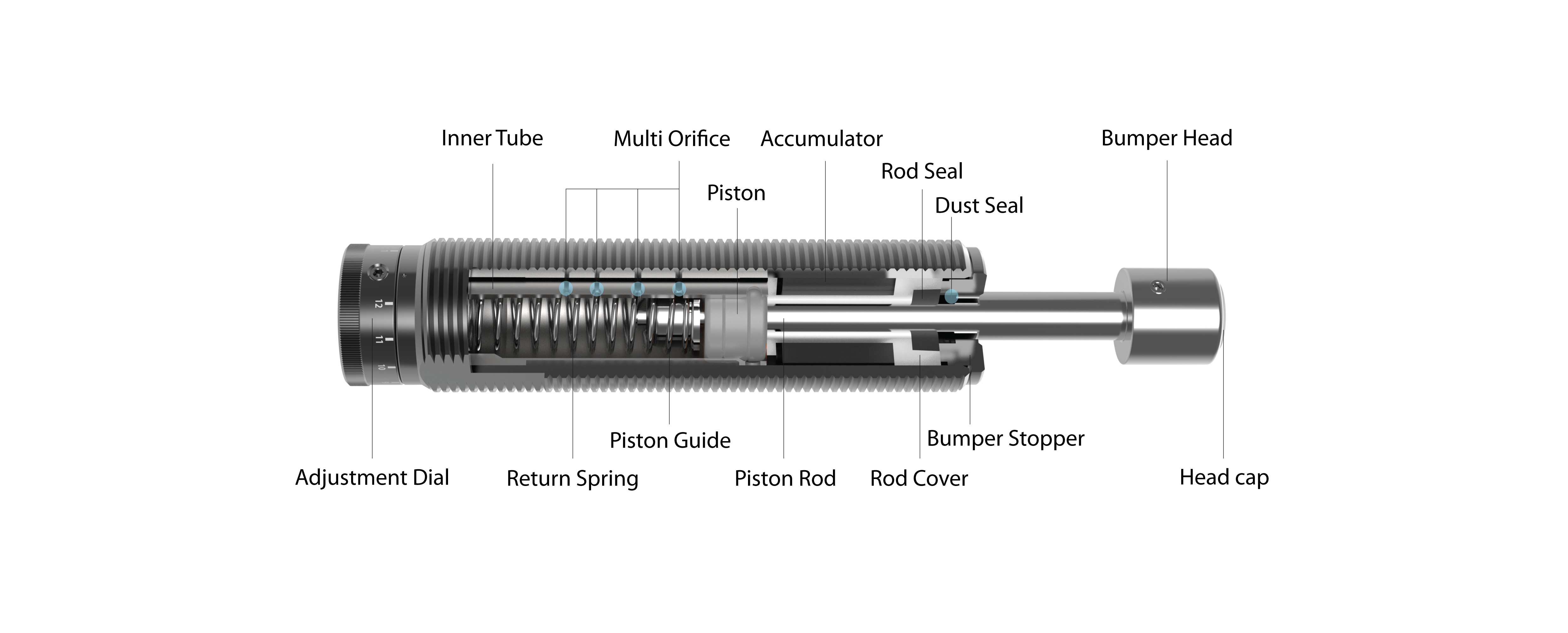

Integrated Body Structure
The one-piece body design provides high structural strength and prevents bottom-out during operation.
Flexible Installation
The threaded body structure allows easy installation and accurate positioning while improving heat dissipation.
Durable Piston Rod
The piston rod is made of hardened stainless steel to ensure high wear resistance and long service life.
Applications
Industrial Robotsㅣ Packaging Machinesㅣ Machine Toolsㅣ Automation Equipmentㅣ Automobile Manufacturing Facilitiesㅣ Tire Manufacturing Facilitiesㅣ Semiconductor Manufacturing Equipmentㅣ Safety Devices

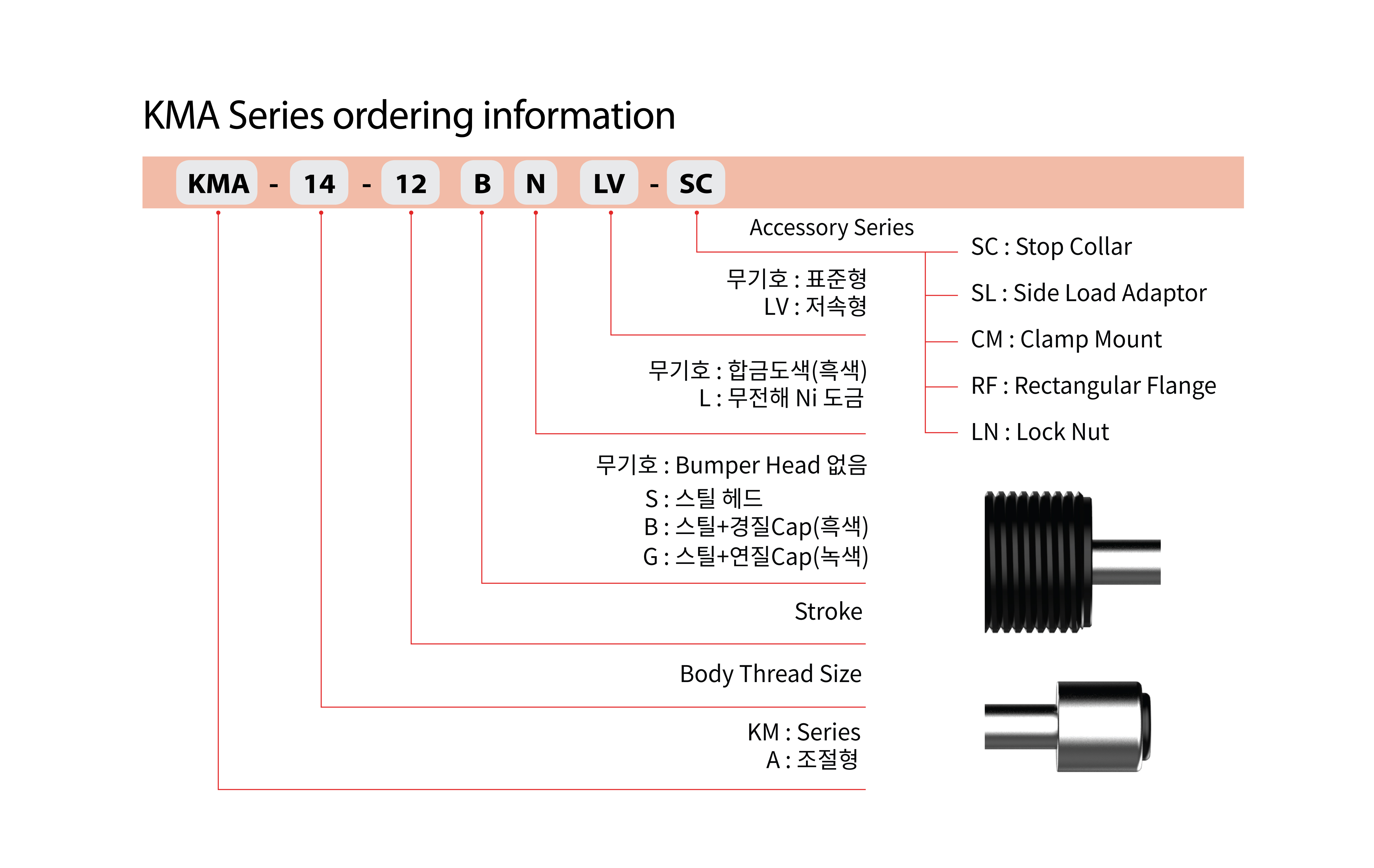

KMA Series Ordering Information
Model Series
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
|

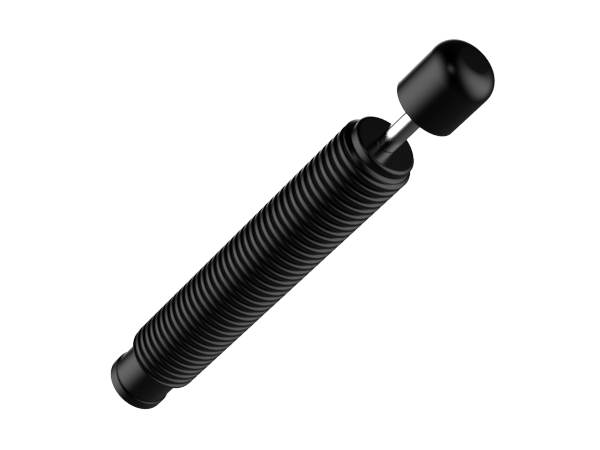

KMA08-06(B) | 6 | 3 | 4,800 | 0.55 - 65 | M8X1.0P |
|

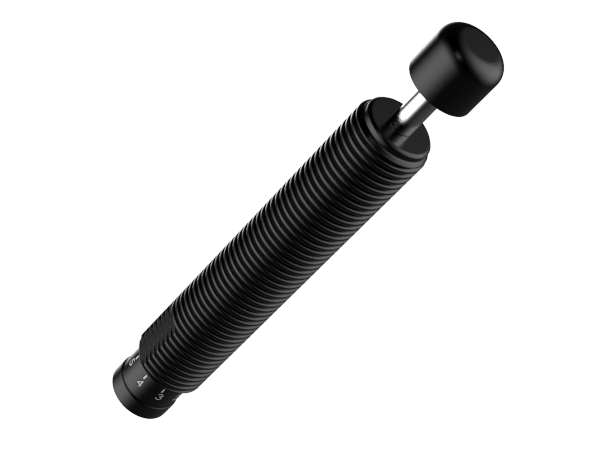

KMA10-07(B) | 7 | 5.5 | 15,000 | 1 - 123 | M10X1.0P |
|

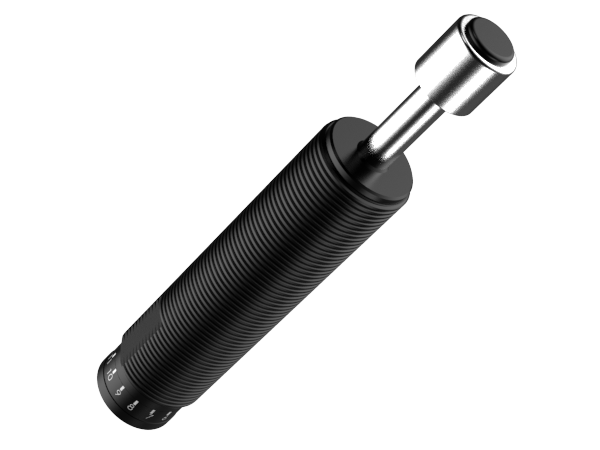

KMA12-14(B) | 14 | 21.5 | 35,000 | 4 - 477 | M12X1.0P |
|

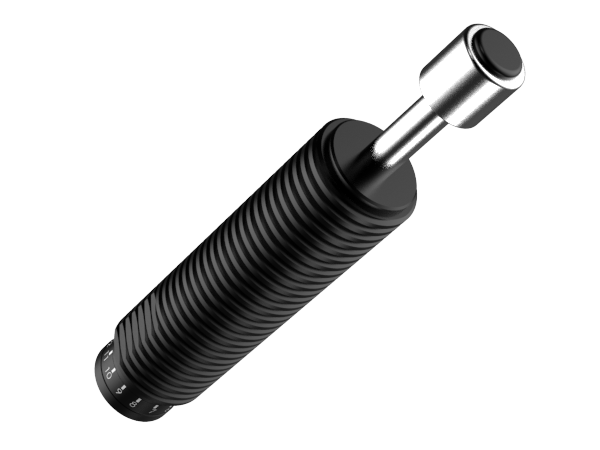

KMA14-12(B) | 12 | 21.5 | 45,000 | 1.5 - 494 | M14X1.5P |
|
KMA14-12(B)LV | 12 | 21.5 | 45,000 | 25.4 - 1,650 | M14X1.5P |
|

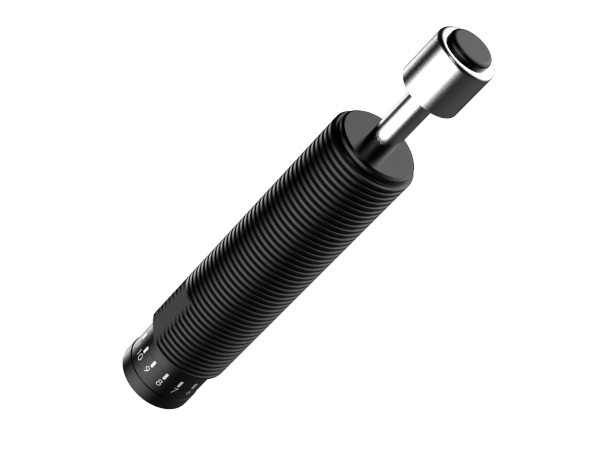

KMA16-12(B) | 12 | 27 | 51,000 | 2 - 527 | M16X1.5P |
|
KMA16-12(B)LV | 12 | 27 | 51,000 | 31.9 - 3,375 | M16X1.5P |
|

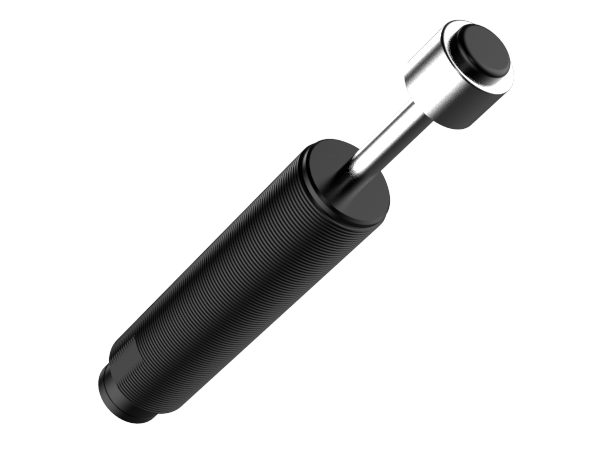

KMA20-16(B) | 16 | 61 | 63,000 | 4.5 - 1,230 | M20X1.5P |
|
KMA20-16(B)LV | 16 | 61 | 63,000 | 72.1 - 5,600 | M20X1.5P |
|

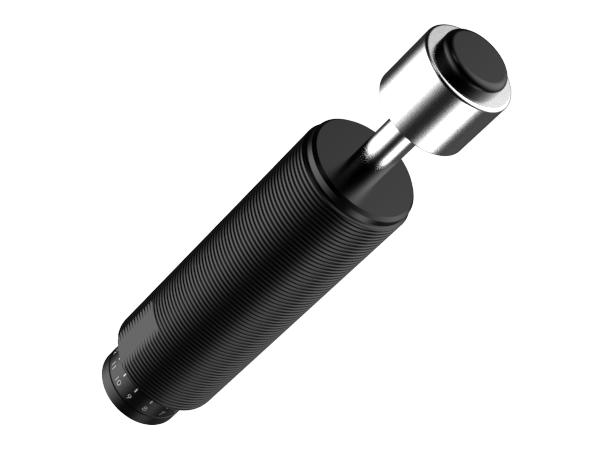

KMA25-25(B) | 25 | 177 | 113,000 | 8.3 - 2,150 | M25X1.5P |
|
KMA25-25(B)LV | 25 | 177 | 113,000 | 209.4 - 15,750 | M25X1.5P |
|
KMA27-25(B) | 25 | 177 | 113,000 | 8.3 - 2,150 | M27X3.0P |
|
KMA27-25(F)(B) | 25 | 177 | 113,000 | 8.3 - 2,150 | M27X3.0P |
|
KMA27-25(F)(B)LV | 25 | 177 | 113,000 | 209.4 - 15,750 | M27X1.5P |
|

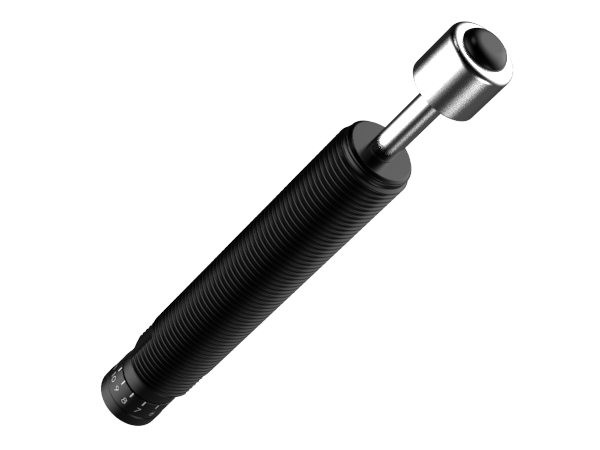

KMA27-40(B) | 40 | 283 | 149,000 | 20 - 5,120 | M27X2.0P |
|
KMA27-40(B)LV | 40 | 283 | 149,000 | 334.9 - 25,200 | M27X2.0P |
|
KMA30-35(B) | 35 | 356 | 137,000 | 25 - 6,950 | M30X1.5P |
|
KMA33-25(B) | 25 | 314 | 120,000 | 25 - 6,980 | M33X1.5P |
|
KMA33-25(B)LV | 25 | 314 | 120,000 | 97 - 60,930 | M33X1.5P |
|
KMA33-50(B) | 50 | 628 | 150,000 | 50 - 14,000 | M33X1.5P |
|
KMA33-50(B)LV | 50 | 628 | 150,000 | 192 - 120,312 | M33X1.5P |
|
KMA36-25(B) | 25 | 346 | 125,000 | 25 - 6,980 | M36X1.5P |
|
KMA36-25(B)LV | 25 | 346 | 125,000 | 97 - 60,930 | M36X1.5P |
|
KMA36-50(B) | 50 | 692 | 160,000 | 50 - 14,000 | M36X1.5P |
|
KMA36-50(B)LV | 50 | 692 | 160,000 | 192 - 120,312 | M36X1.5P |
