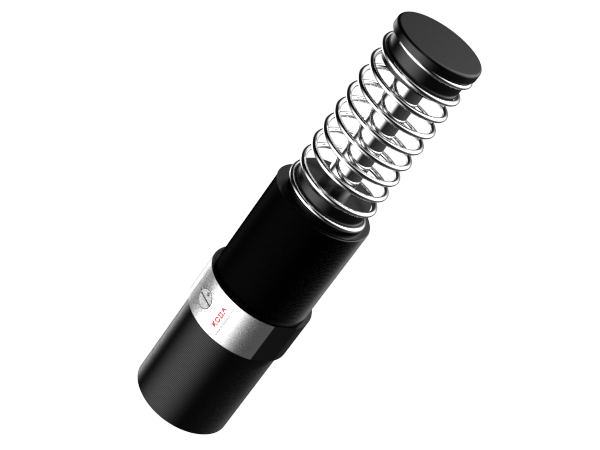

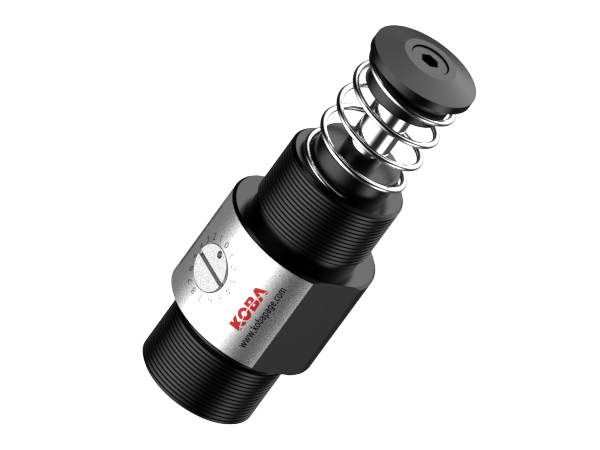

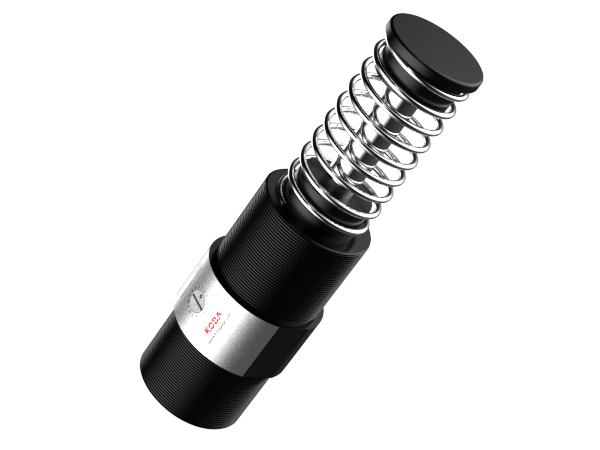

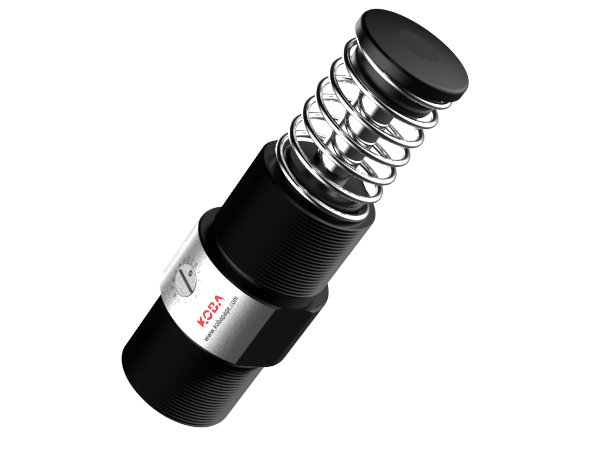

KHA Series
KHA Heavy type Absorber
Overview
The KHA Series is a heavy-duty adjustable hydraulic shock absorber designed to effectively absorb impact energy generated in medium to large industrial equipment.
The Adjustment Dial allows the damping force to be adjusted, enabling flexible response to various impact velocities and load conditions while providing stable deceleration performance.
Based on its extended stroke and high energy absorption capacity, it improves equipment protection and process stability even in large-scale machinery and high-load environments.
Features

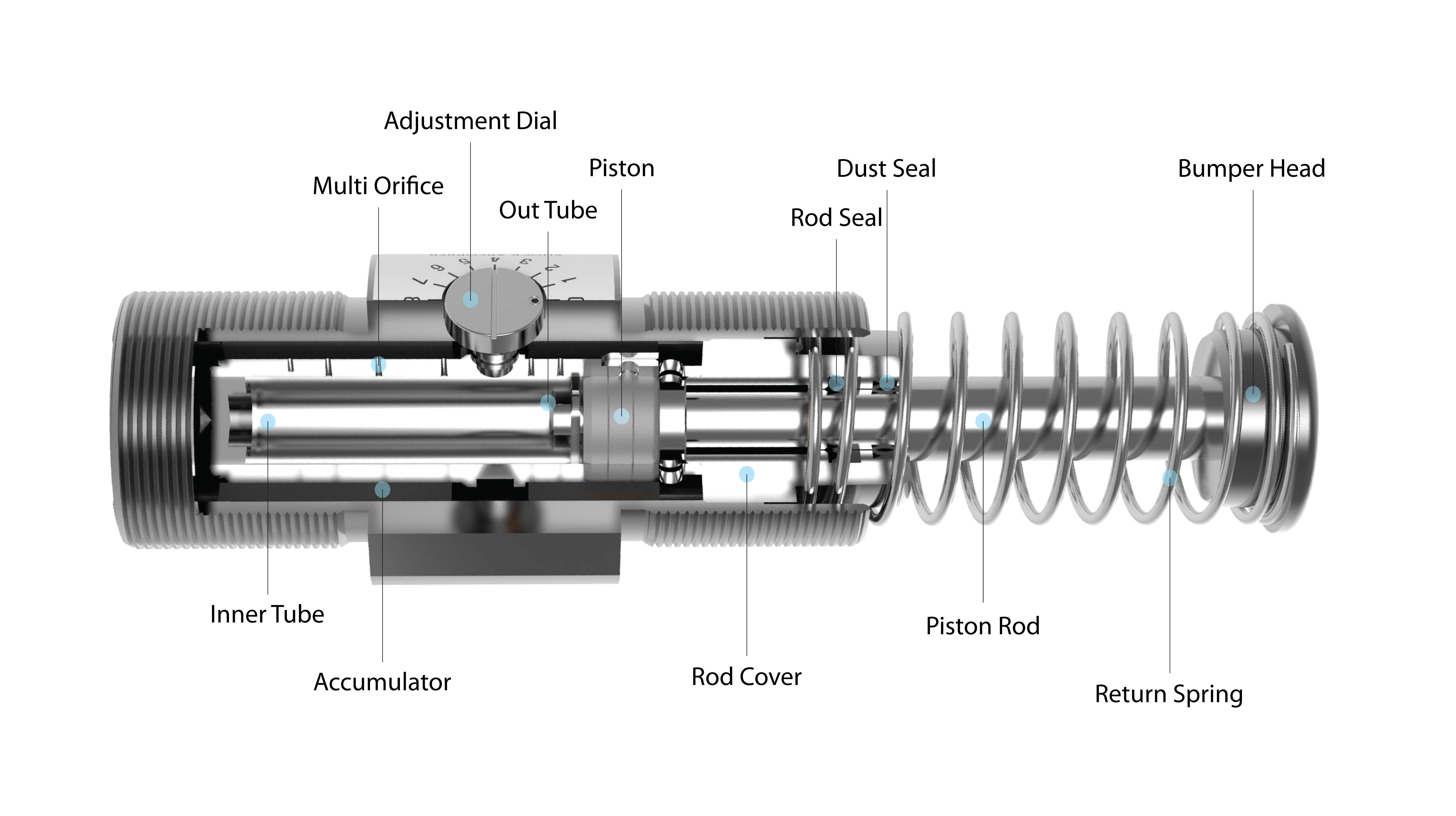

Adjustable Damping Structure (Adjustable Type)
The damping force can be adjusted according to impact conditions through an Adjustment Dial within a 0–180° range, allowing application in various industrial environments.
Heavy-Duty Design for High Loads
With an extended stroke and high energy absorption performance, it enables stable impact control even in medium to large equipment and high-load conditions.
Integrated Body and Structural Stability
The robust structural design maintains stable performance during impact and maximizes equipment protection.
Easy Installation and Heat Dissipation Structure
The threaded body structure allows easy installation and position adjustment, while the increased surface area design effectively dissipates thermal energy.
Excellent Durability
A wear-resistant piston rod and high-quality seals ensure long-term stable operation even in repetitive impact environments.
Noise Reduction and Optional Configuration
By applying a Bumper Head and Urethane Cap, impact noise can be reduced and the product can adapt to various operating environments.
Applications
Industrial Robots | Machine Tools and Press Equipment | Automotive Production Facilities | Tire and Foundry Equipment | Logistics and Transfer Systems | Cranes and Heavy Machinery | Industrial Safety Devices

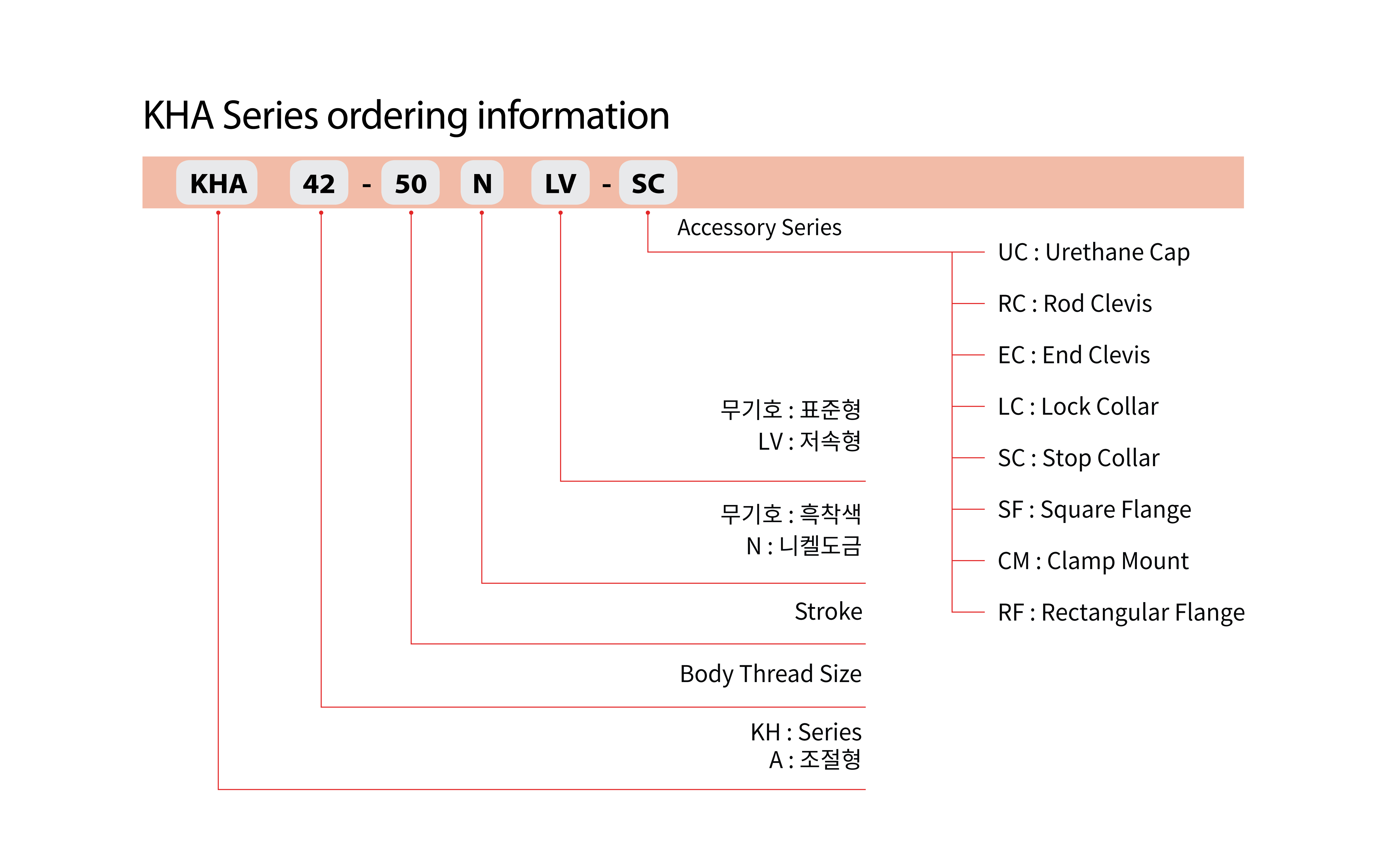

KHA Series Ordering Information
Model Series
-
- KHA 42 Series
- Body Thread Size : 42
Stroke : 25, 50, 75
-
- KHA 64 Series
- Body Thread Size : 64
Stroke : 50, 100, 150
-
- KHA 85 Series
- Body Thread Size : 85
Stroke : 50, 90, 125, 165
-
- KHA 115 Series
- Body Thread Size : 115
Stroke : 50, 100, 150, 200, 250
-
- KHAT 42 Series
- Body Thread Size : 42
Stroke : 25, 50, 75
-
- KHAT 64 Series
- Body Thread Size : 64
Stroke : 50, 100, 150
-
- KHAT 85 Series
- Body Thread Size : 85
Stroke : 50, 90, 125, 165
-
- KHAT 115 Series
- Body Thread Size : 115
Stroke : 50, 100, 150, 200, 250
