Product Category

Series

Series

Model

Model Stroke(mm) Max.Energy/
Cycle(KJ)ET		 Dyn.
Reaction Force(kN)		 Impact
Velocity(m/s)
Rdmin Rdmax Max
KESM25-12 12 0.1 6 11 2
KESM35-22 22 0.4 14 27 4
KESM40-22 22 0.4 14 27 5
KESM50-35 35 1.5 28 60 5
KESM60-35 35 1.5 28 60 5
KESM75-45 45 3.5 45 100 5
KESM90-60 60 7 90 150 5
KESM110-80 80 12 130 230 5

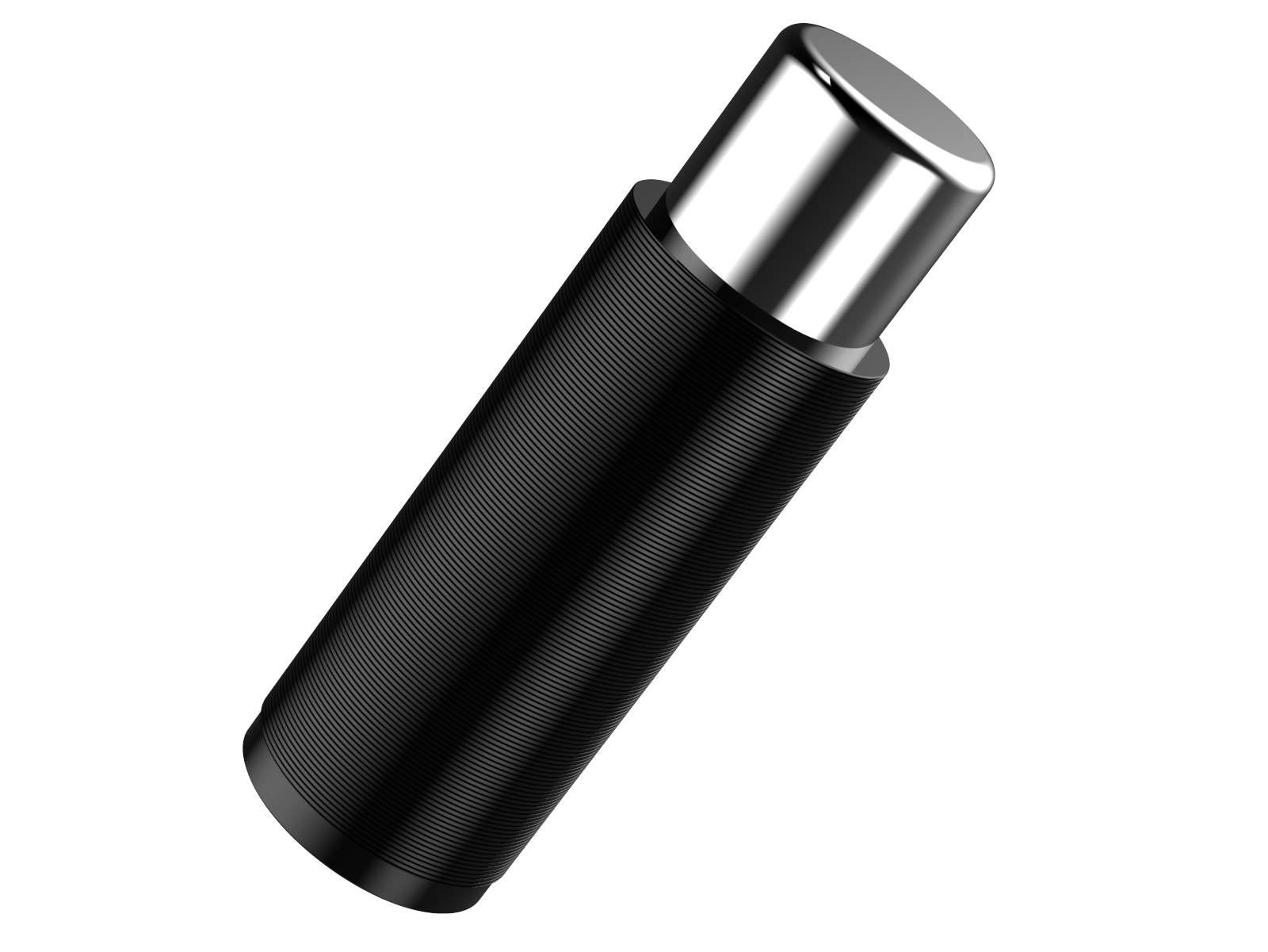

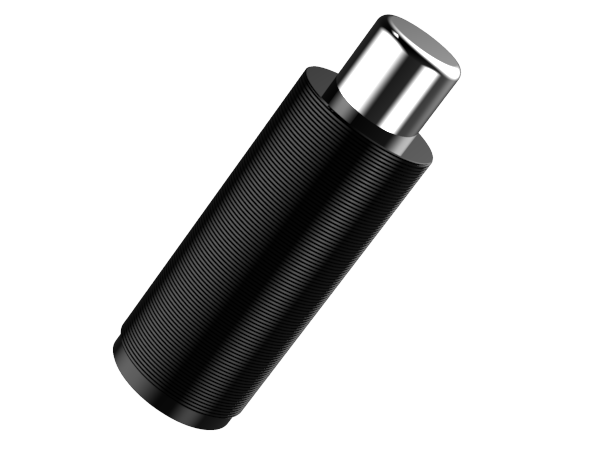

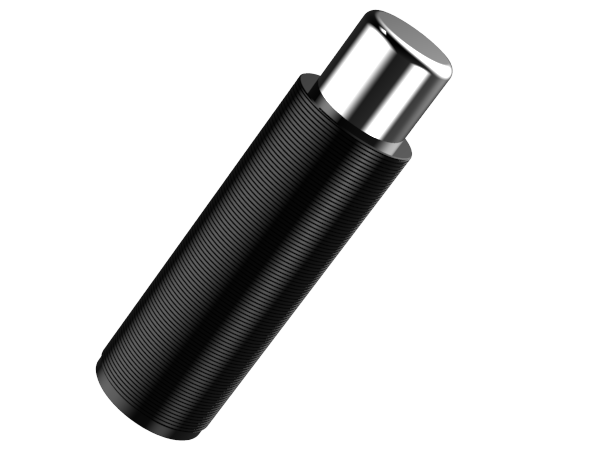

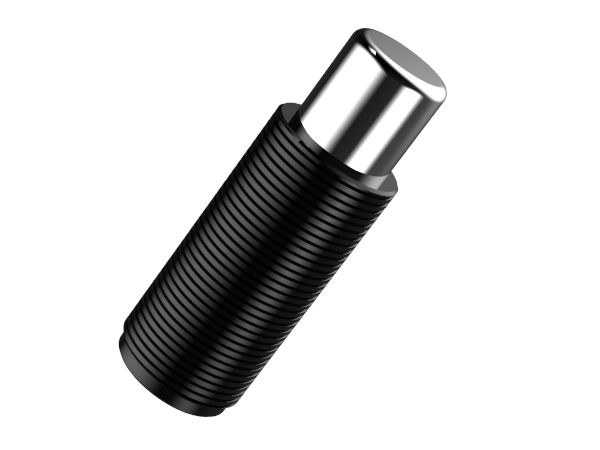

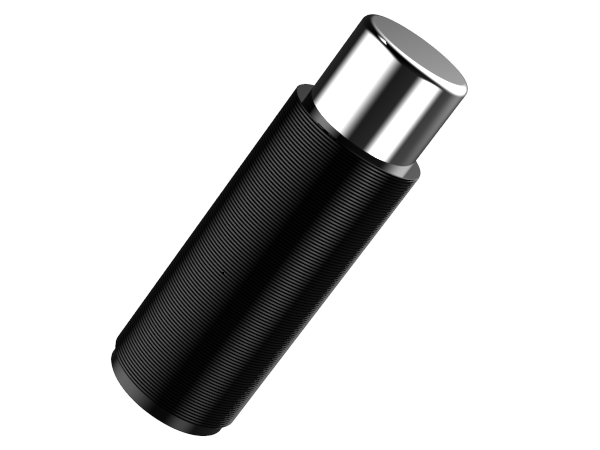

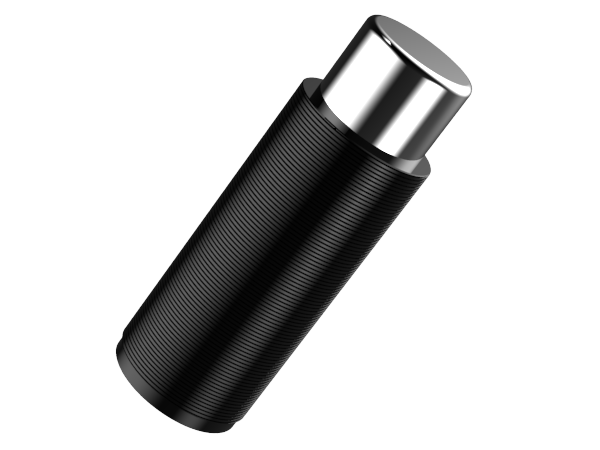

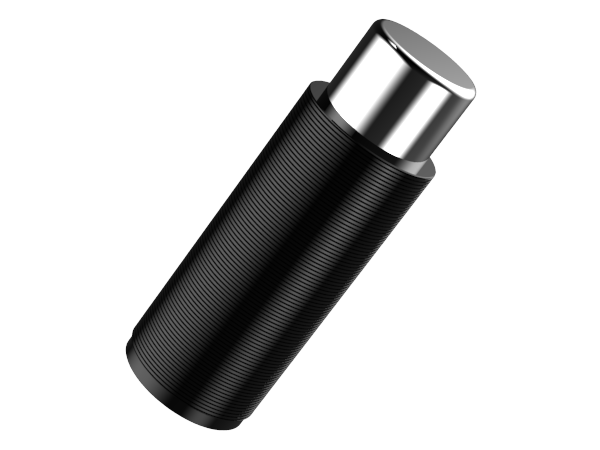

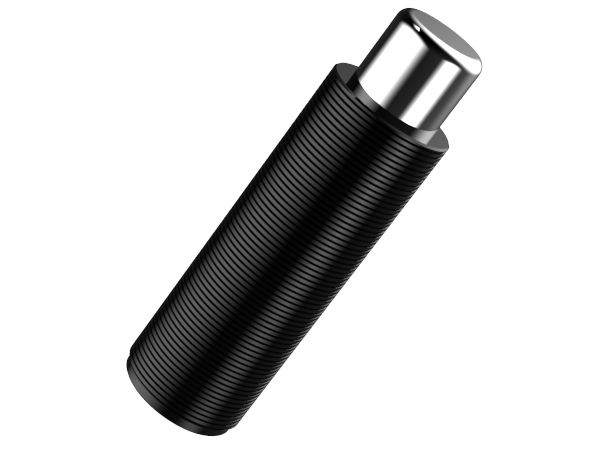

KESM Series

Visco-Elastic Buffer

KESM Series

Visco-Elastic Buffer
Body Thread Size : 25, 35, 40, 50, 60, 75, 90, 110
Stroke : 12, 22, 35, 45, 60, 80
inquiry

Installation Size

Image Model Stroke
(mm)		 Max.Energy/
Cycle(KJ)ET		 Dyn.
Reaction Force(kN)		 Impact
Velocity(m/s)
Rdmin Rdmax Max
KESM25-12 12 0.1 6 11 2
KESM35-22 22 0.4 14 27 4
KESM40-22 22 0.4 14 27 5
KESM50-35 35 1.5 28 60 5
KESM60-35 35 1.5 28 60 5
KESM75-45 45 3.5 45 100 5
KESM90-60 60 7 90 150 5
KESM110-80 80 12 130 230 5
