Product Category

Series

Series

Model

Model Stroke(mm) Max.Energy/
Cycle(KJ)ET		 Dyn.
Reaction Force(kN)		 Impact
Velocity(m/s)
Rdmin Rdmax Max
KESH130-400 400 100 190 310 3
KESH140-500 500 150 200 380 3
KESH140-400H 400 220 380 685 3
KESH155-650 650 250 270 490 3
KESH175-850 850 400 330 600 3
KESH200-1050 1,050 600 370 740 3
KESH220-1200 1,200 800 430 860 3
KESH230-1300 1,300 1,000 500 1,000 3

KESH Series

Visco-Elastic Buffer

KESH Series

Body Thread Size : 130, 140, 155, 175, 200, 220, 230
Stroke : 400, 500, 650, 850, 1050, 1200, 1300
inquiry

Installation Size

Image Model Stroke
(mm)		 Max.Energy/
Cycle(KJ)ET		 Dyn.
Reaction Force(kN)		 Impact
Velocity(m/s)
Rdmin Rdmax Max

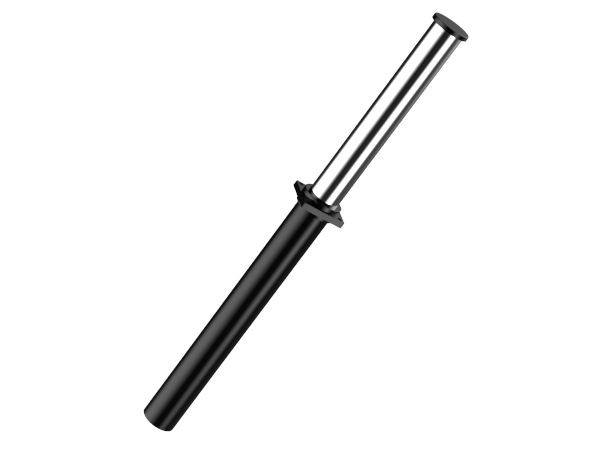

KESH130-400 400 100 190 310 3

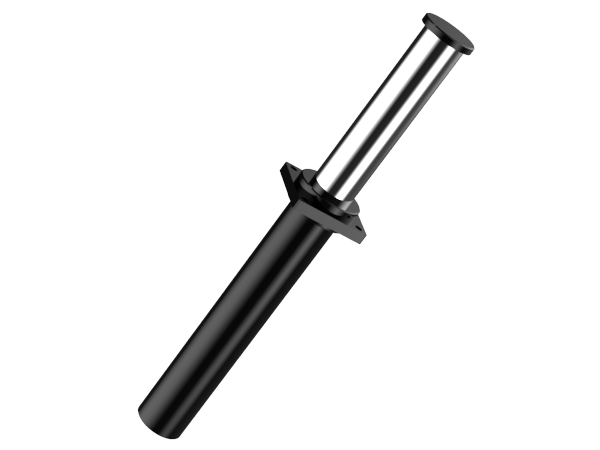

KESH140-500 500 150 200 380 3

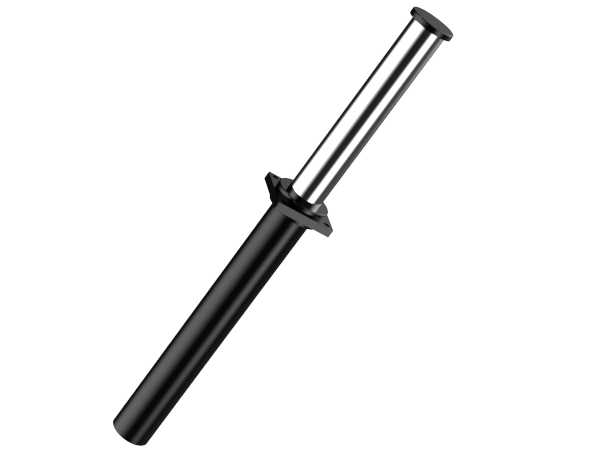

KESH140-400H 400 220 380 685 3

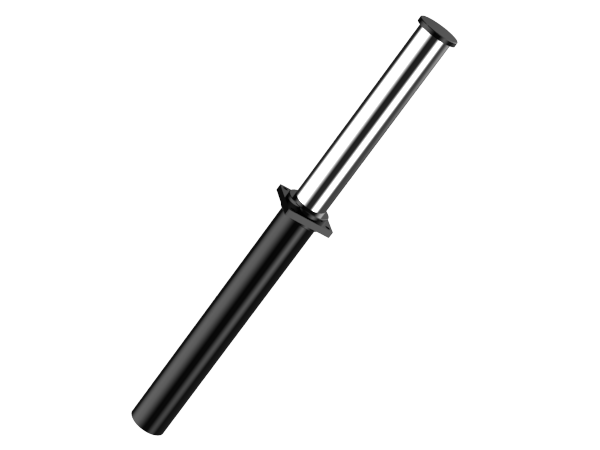

KESH155-650 650 250 270 490 3

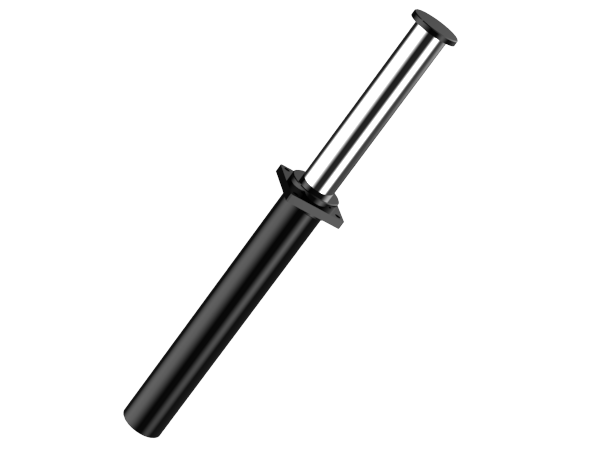

KESH175-850 850 400 330 600 3

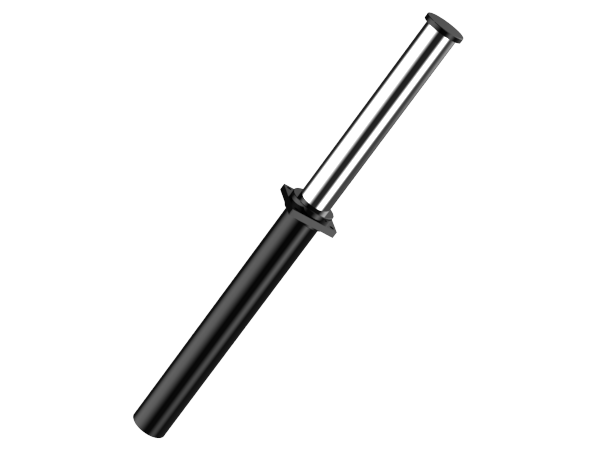

KESH200-1050 1,050 600 370 740 3

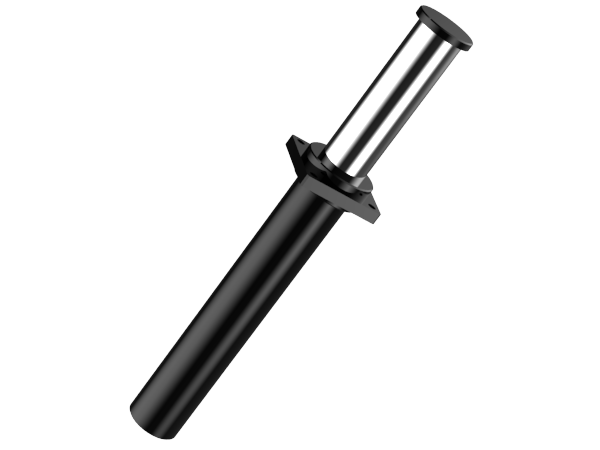

KESH220-1200 1,200 800 430 860 3

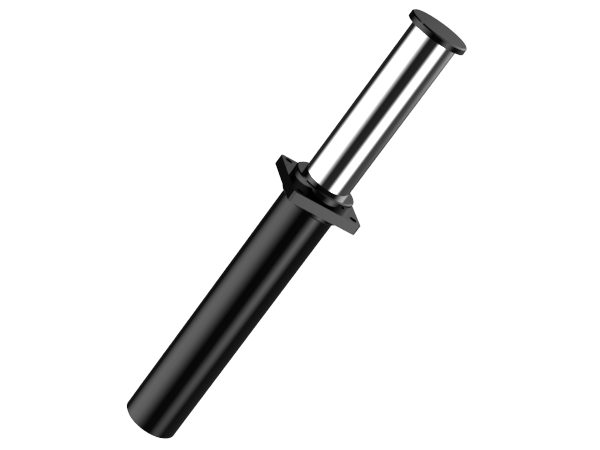

KESH230-1300 1,300 1,000 500 1,000 3
