Product Category

Series

Series

Model

Model Stroke(mm) Max.Energy/
Cycle(KJ)ET		 Dyn.
Reaction Force(kN)		 Impact
Velocity(m/s)
Rdmin Rdmax Max
KESS50-150 150 6 25 50 3
KESS75-150 150 12 66 100 3
KESS75-200 200 12 42 78 3
KESS90-200 200 25 95 150 3
KESS90-270 270 25 66 112 3
KESS110-275 275 50 118 230 3
KESS110-400 400 50 75 150 3
KESS110-400H 400 100 175 320 3
KESS110-600 600 100 85 230 3
KESS110-800 800 150 80 250 3

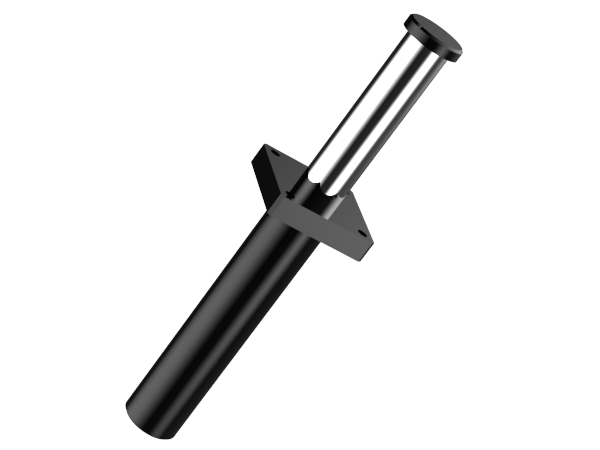

KESS Series

Visco-Elastic Buffer

KESS Series

Visco-Elastic Buffer
Body Thread Size : 50, 75, 90, 110
Stroke : 105, 130, 140, 160, 180
inquiry

Installation Size

Image Model Stroke
(mm)		 Max.Energy/
Cycle(KJ)ET		 Dyn.
Reaction Force(kN)		 Impact
Velocity(m/s)
Rdmin Rdmax Max
KESS50-150 150 6 25 50 3
KESS75-150 150 12 66 100 3
KESS75-200 200 12 42 78 3
KESS90-200 200 25 95 150 3
KESS90-270 270 25 66 112 3
KESS110-275 275 50 118 230 3
KESS110-400 400 50 75 150 3
KESS110-400H 400 100 175 320 3
KESS110-600 600 100 85 230 3
KESS110-800 800 150 80 250 3
