Product Category

Series

Series

Model

Model Stroke(mm) Max.Energy/
Cycle(KJ)ET		 Dyn.
Reaction Force(kN)		 Impact
Velocity(m/s)
Rdmin Rdmax Max
KESE116-105 105 25 167 310 4
KESE142-130 130 50 260 500 4
KESE160-140 140 75 400 700 4
KESE180-160 160 100 470 820 4
KESE215-180 180 150 640 1,100 4

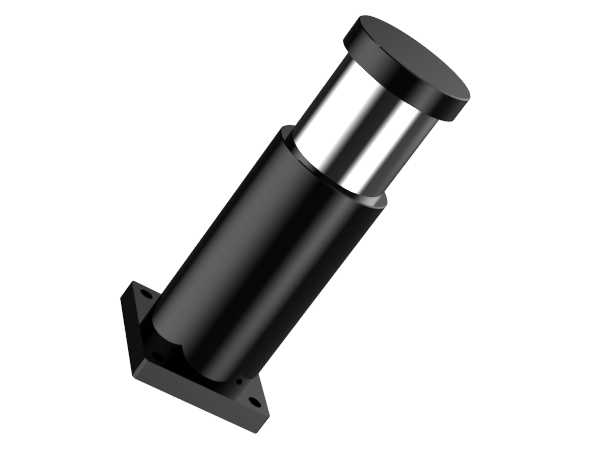

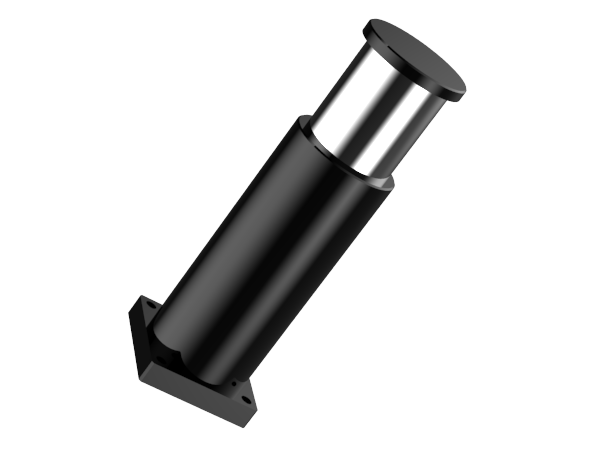

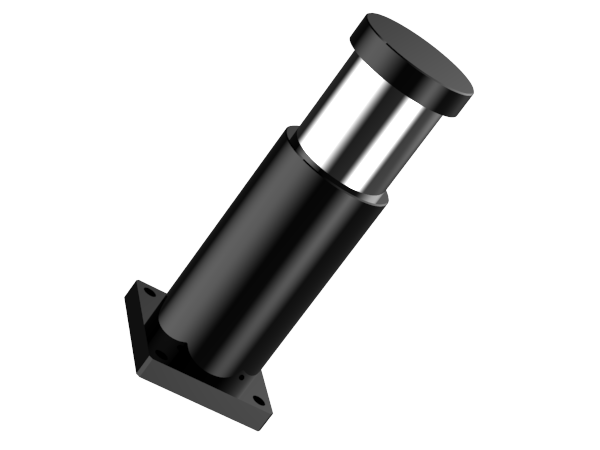

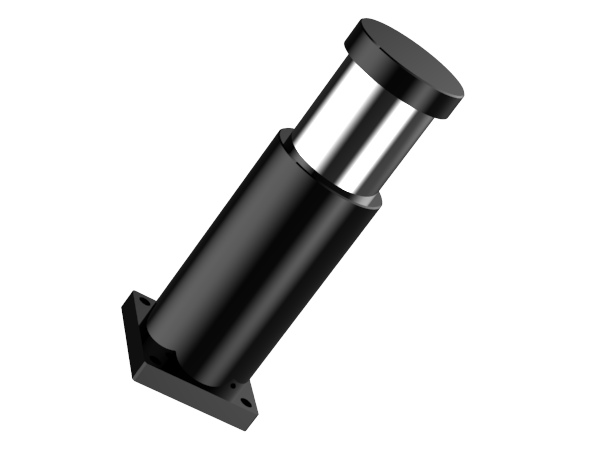

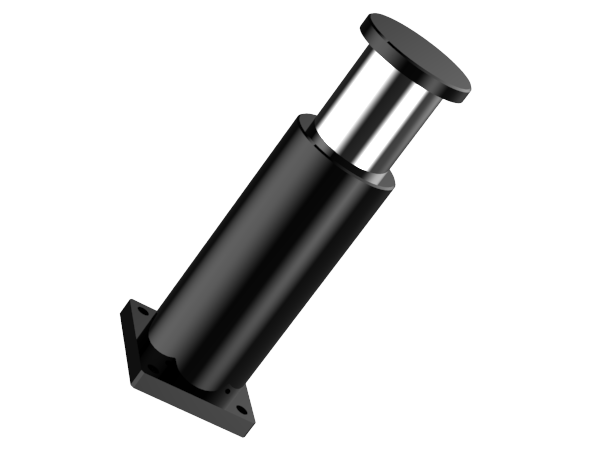

KESE Series

Visco-Elastic Buffer

KESE Series

Visco-Elastic Buffer
Body Thread Size : 116, 142, 160, 180, 215
Stroke : 105, 130, 140, 160, 180
inquiry

Installation Size

Image Model Stroke
(mm)		 Max.Energy/
Cycle(KJ)ET		 Dyn.
Reaction Force(kN)		 Impact
Velocity(m/s)
Rdmin Rdmax Max
KESE116-105 105 25 167 310 4
KESE142-130 130 50 260 500 4
KESE160-140 140 75 400 700 4
KESE180-160 160 100 470 820 4
KESE215-180 180 150 640 1,100 4
