Product Category

Series

Series

Model

Model Stroke
(mm)		 Max.Energy/
Cycle(Nm)ET		 Max.Energy/
Hour(Nm/h)EtC		 Effctive
Weight(kg)		 M
KSA45-25 25 650 195,000 50 - 13,354 M45X1.5P
KSA45-50 50 1,300 260,000 99 - 26,700 M45X1.5P
KSA45-75 75 2,000 300,000 148 - 39,060 M45X1.5P

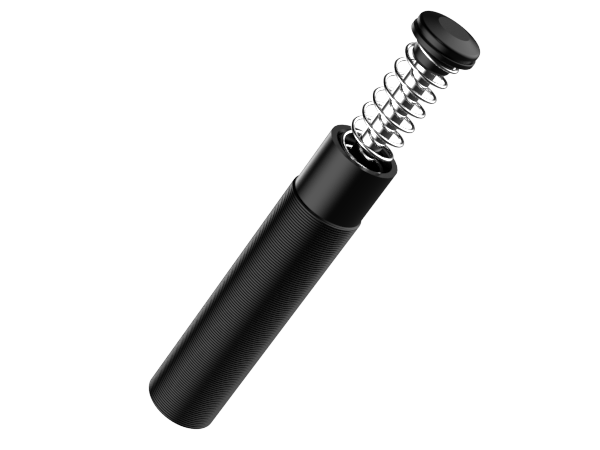

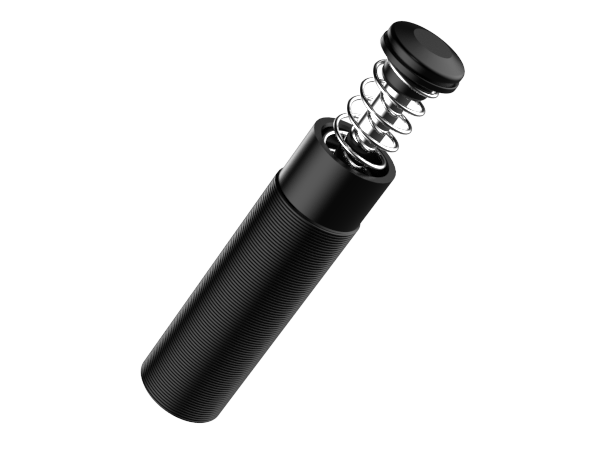

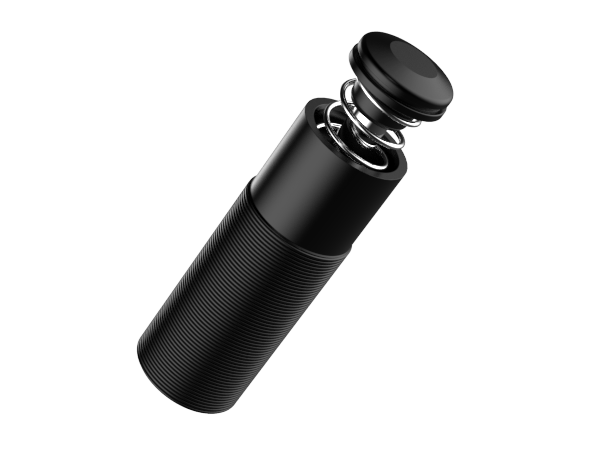

KSA 45 Series

KSA Straight type Absorber (middle class)

KSA 45 Series

Straight type Absorber (middle class)
Body Thread Size : 45
Stroke : 25, 50, 75
inquiry

Installation Size

Image Model Stroke
(mm)		 Max.Energy/
Cycle(Nm)ET		 Max.Energy/
Hour(Nm/h)EtC		 Effctive
Weight(kg)		 M
KSA45-25 25 650 195,000 50 - 13,354 M45X1.5P
KSA45-50 50 1,300 260,000 99 - 26,700 M45X1.5P
KSA45-75 75 2,000 300,000 148 - 39,060 M45X1.5P
