Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Buffer Force(kN)F_s
KHG100-50	50	11	280
KHG100-80	80	18	280
KHG100-100	100	23	280
KHG100-120	120	27	280
KHG100-150	150	34	280
KHG100-200	200	46	280
KHG100-250	250	58	280
KHG100-300	300	69	280
KHG100-400	400	90	280
KHG100-500	500	110	275
KHG100-600	600	125	260
KHG100-800	800	140	210

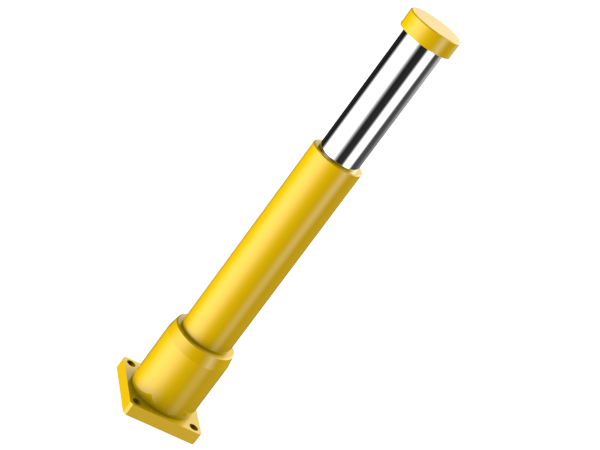

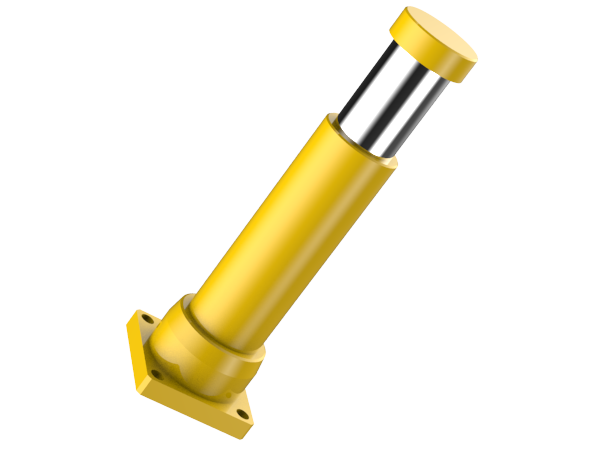

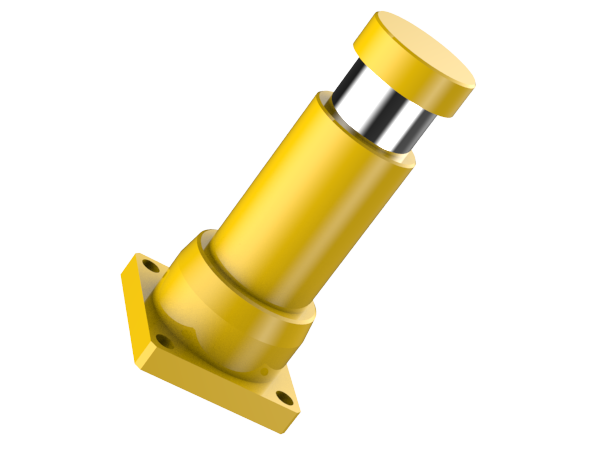

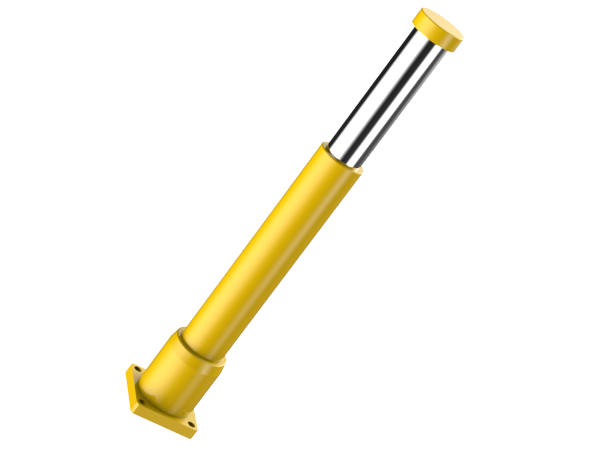

KHG 100 Series

Hydraulic Gas & Oil type Buffer

KHG 100 Series

Hydraulic Gas & Oil type Buffer
Body Thread Size : 100
Stroke : 80, 100, 150, 200, 250, 300

inquiry

Installation Size

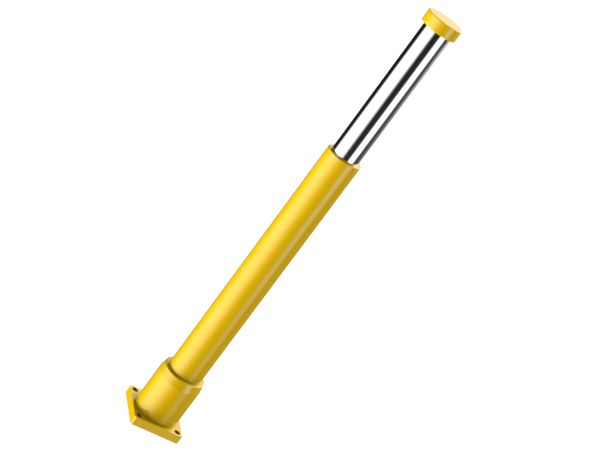

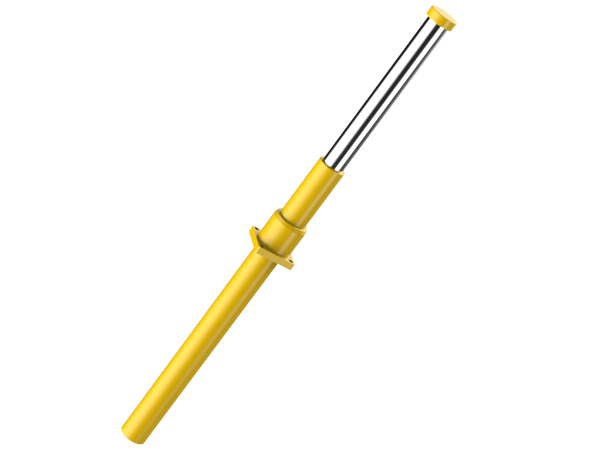

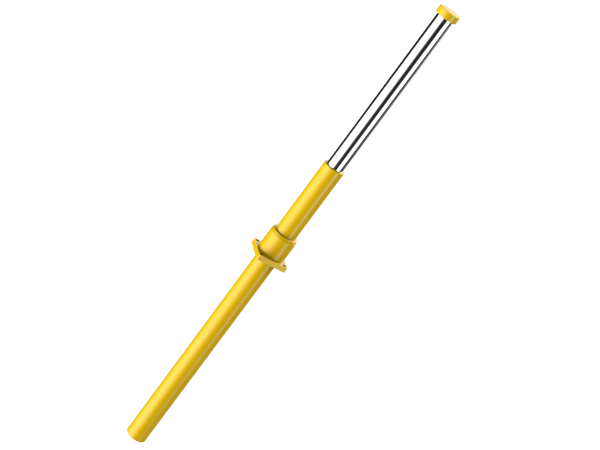

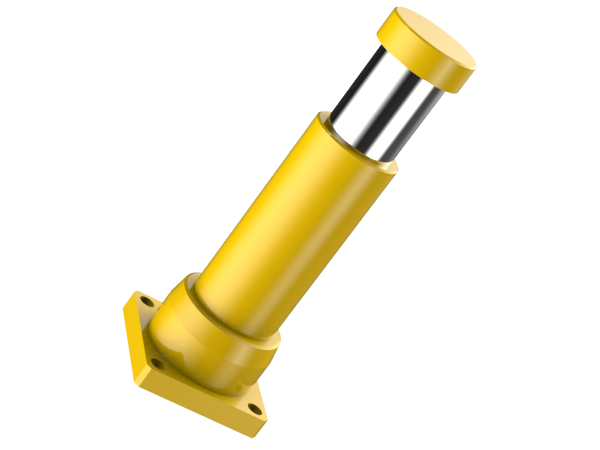

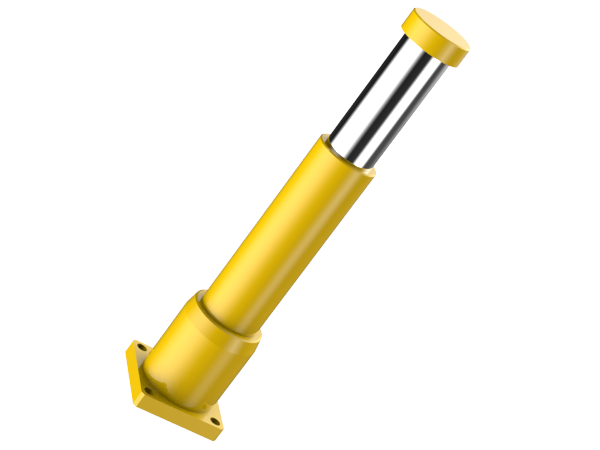

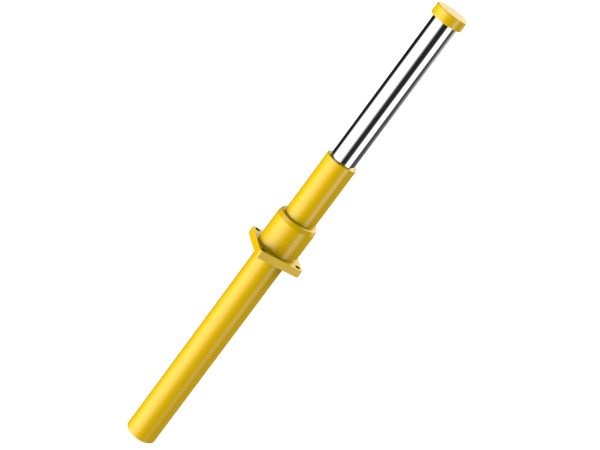

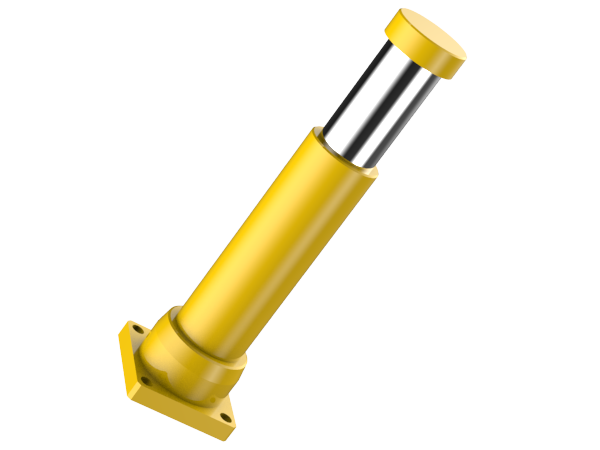

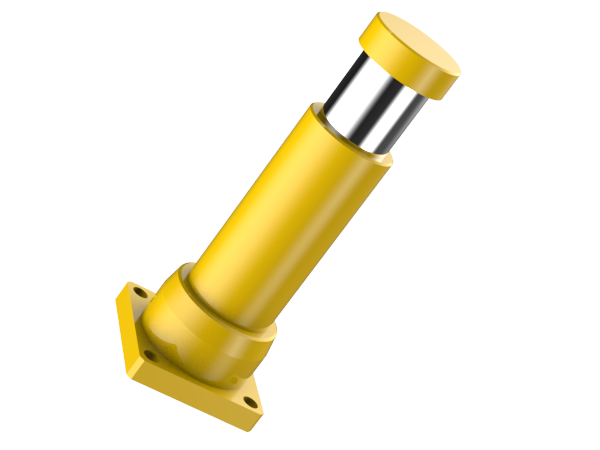

Image	Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Buffer Force(kN)F_s
	KHG100-50	50	11	280
	KHG100-80	80	18	280
	KHG100-100	100	23	280
	KHG100-120	120	27	280
	KHG100-150	150	34	280
	KHG100-200	200	46	280
	KHG100-250	250	58	280
	KHG100-300	300	69	280
	KHG100-400	400	90	280
	KHG100-500	500	110	275
	KHG100-600	600	125	260
	KHG100-800	800	140	210
