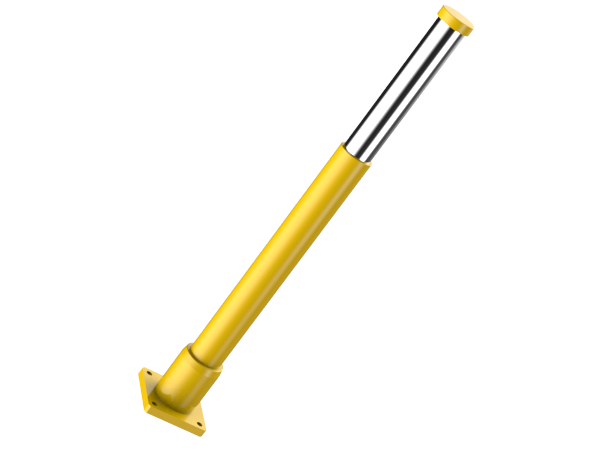

KHG 140 Series
Hydraulic Gas & Oil type Buffer
KHG 140 Series
Hydraulic Gas & Oil type Buffer
Body Thread Size : 140
Stroke : 100, 150, 200, 300, 400, 500, 600, 800, 1000
Body Thread Size : 140
Stroke : 100, 150, 200, 300, 400, 500, 600, 800, 1000
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(KJ)ET |
Max.Buffer Force(kN)Fs |
|---|---|---|---|---|
 |

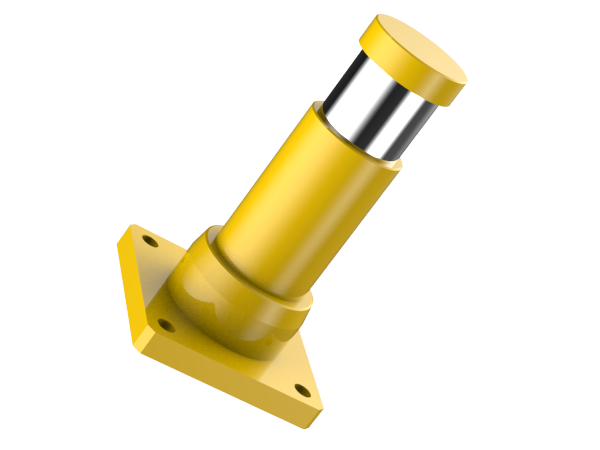

KHG140-100 | 100 | 62 | 760 |
 |

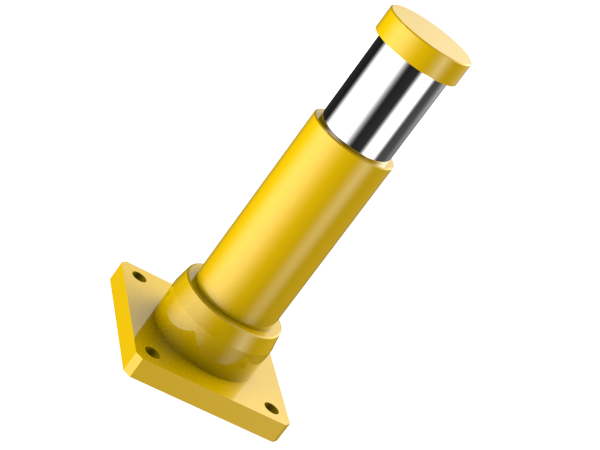

KHG140-150 | 150 | 91 | 760 |
 |

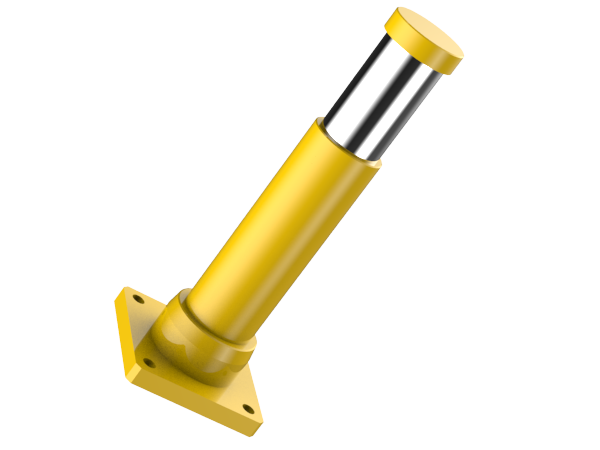

KHG140-200 | 200 | 124 | 730 |
 |

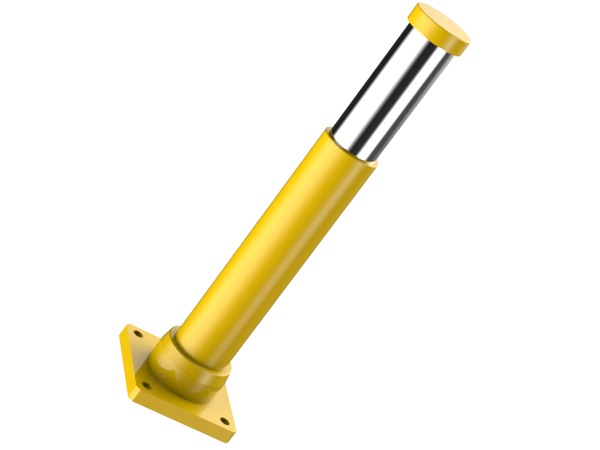

KHG140-300 | 300 | 175 | 730 |
 |

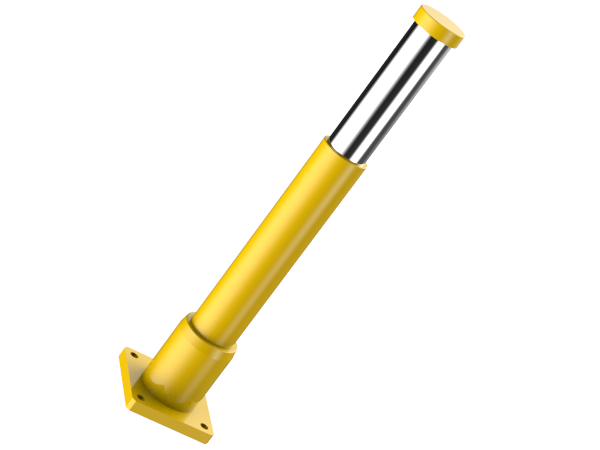

KHG140-400 | 400 | 234 | 730 |
 |

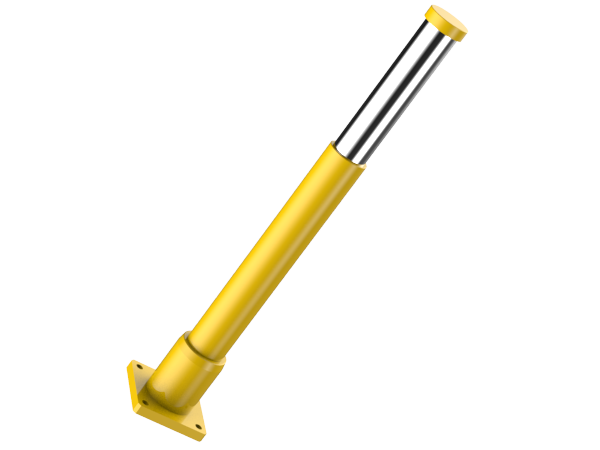

KHG140-500 | 500 | 270 | 680 |
 |
KHG140-600 | 600 | 300 | 630 |
 |

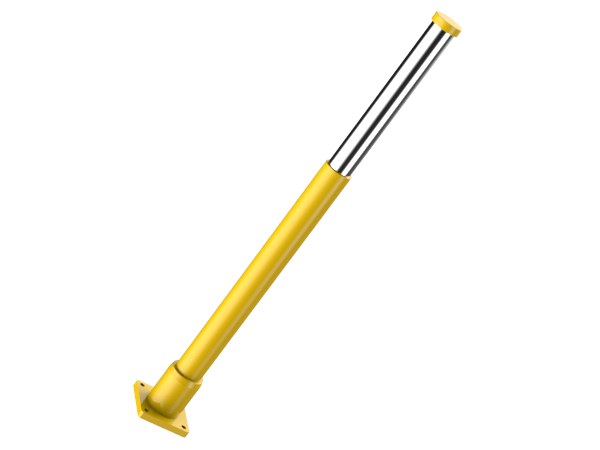

KHG140-800 | 800 | 325 | 510 |
 |

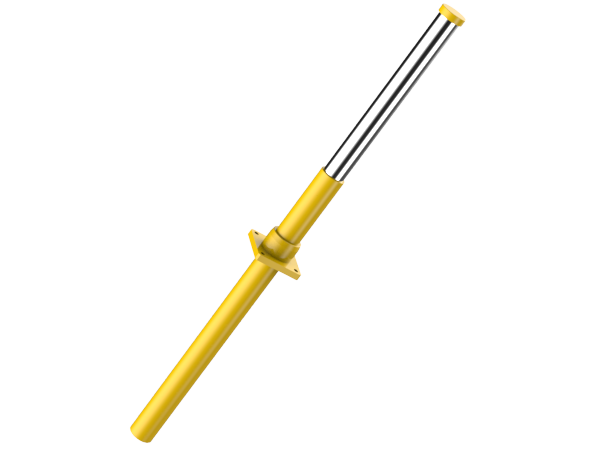

KHG140-1000 | 1,000 | 360 | 450 |
