KHG 180 Series
Hydraulic Gas & Oil type Buffer
KHG 180 Series
Hydraulic Gas & Oil type Buffer
Body Thread Size : 150
Stroke : 100, 200, 250, 400, 500, 600, 800, 1000
Body Thread Size : 150
Stroke : 100, 200, 250, 400, 500, 600, 800, 1000
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(KJ)ET |
Max.Buffer Force(kN)Fs |
|---|---|---|---|---|
 |

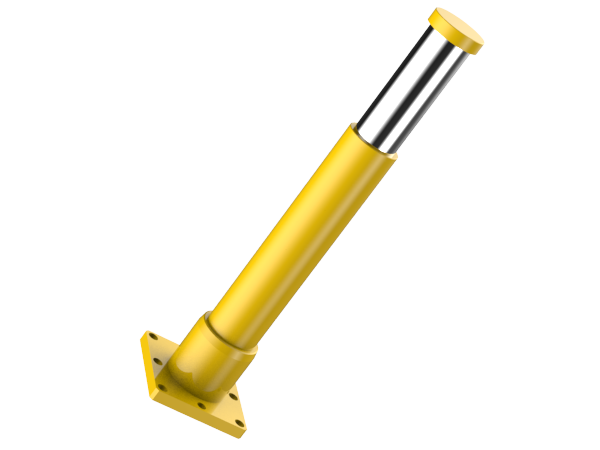

KHG180-100 | 100 | 80 | 980 |
 |

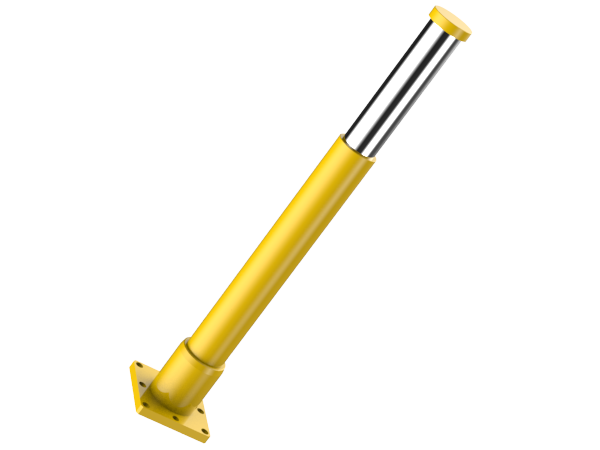

KHG180-200 | 200 | 160 | 980 |
 |

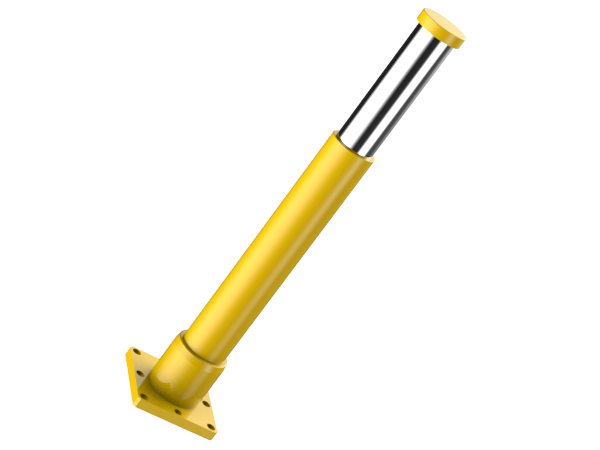

KHG180-250 | 250 | 200 | 980 |
 |

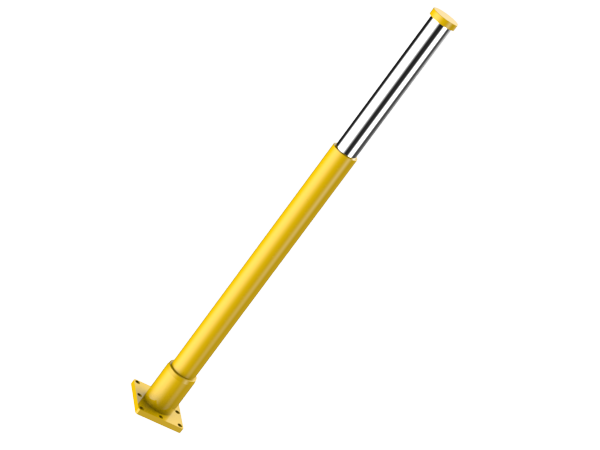

KHG180-400 | 400 | 280 | 880 |
 |

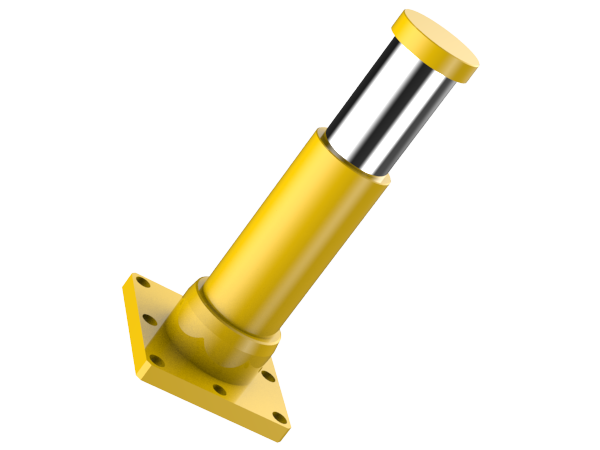

KHG180-500 | 500 | 350 | 880 |
 |

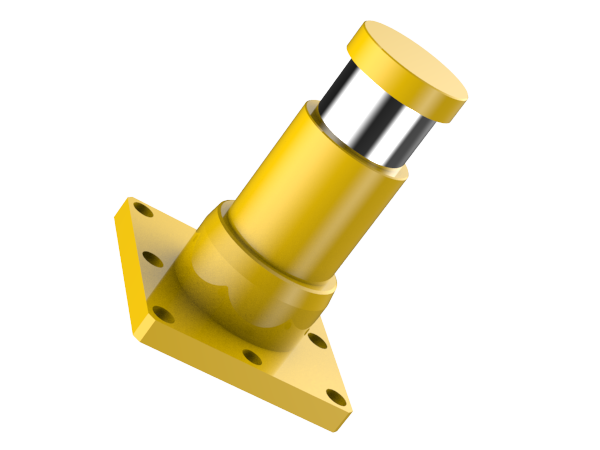

KHG180-600 | 600 | 430 | 890 |
 |

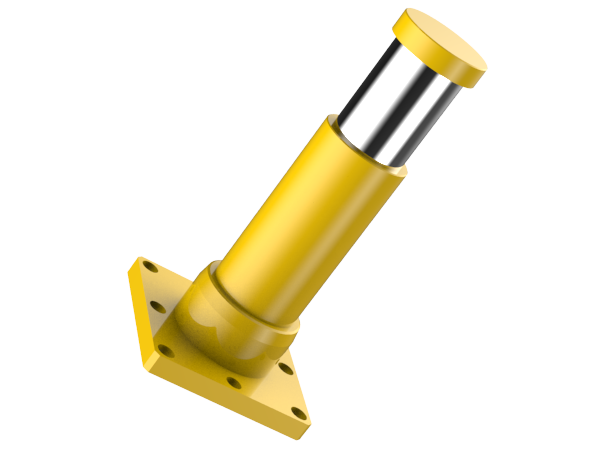

KHG180-800 | 800 | 570 | 890 |
 |

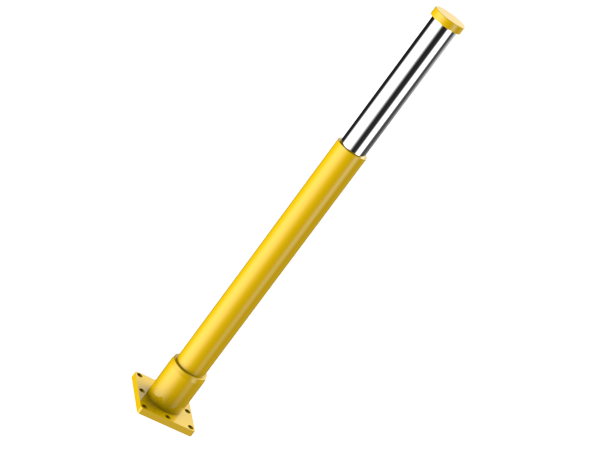

KHG180-1000 | 1,000 | 720 | 890 |
