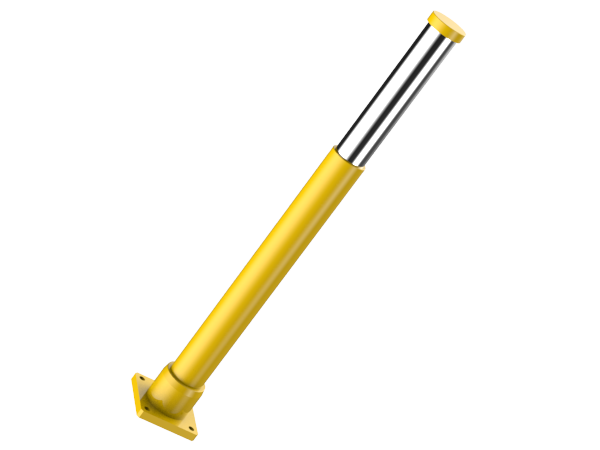

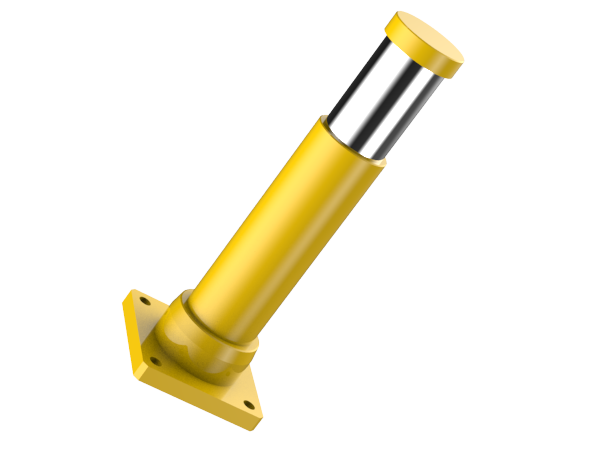

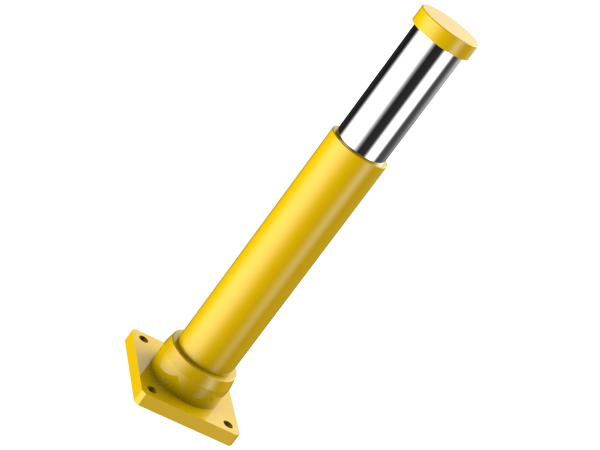

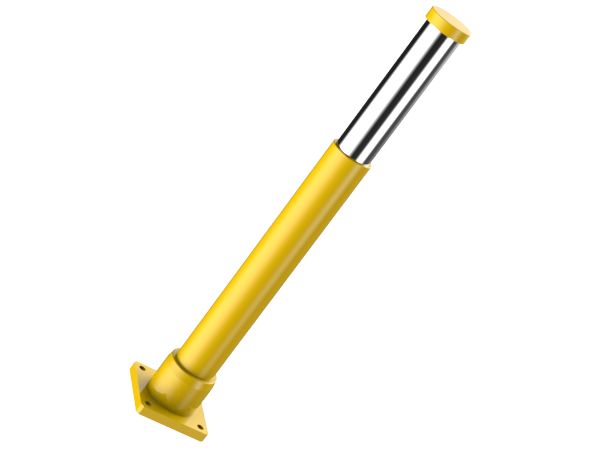

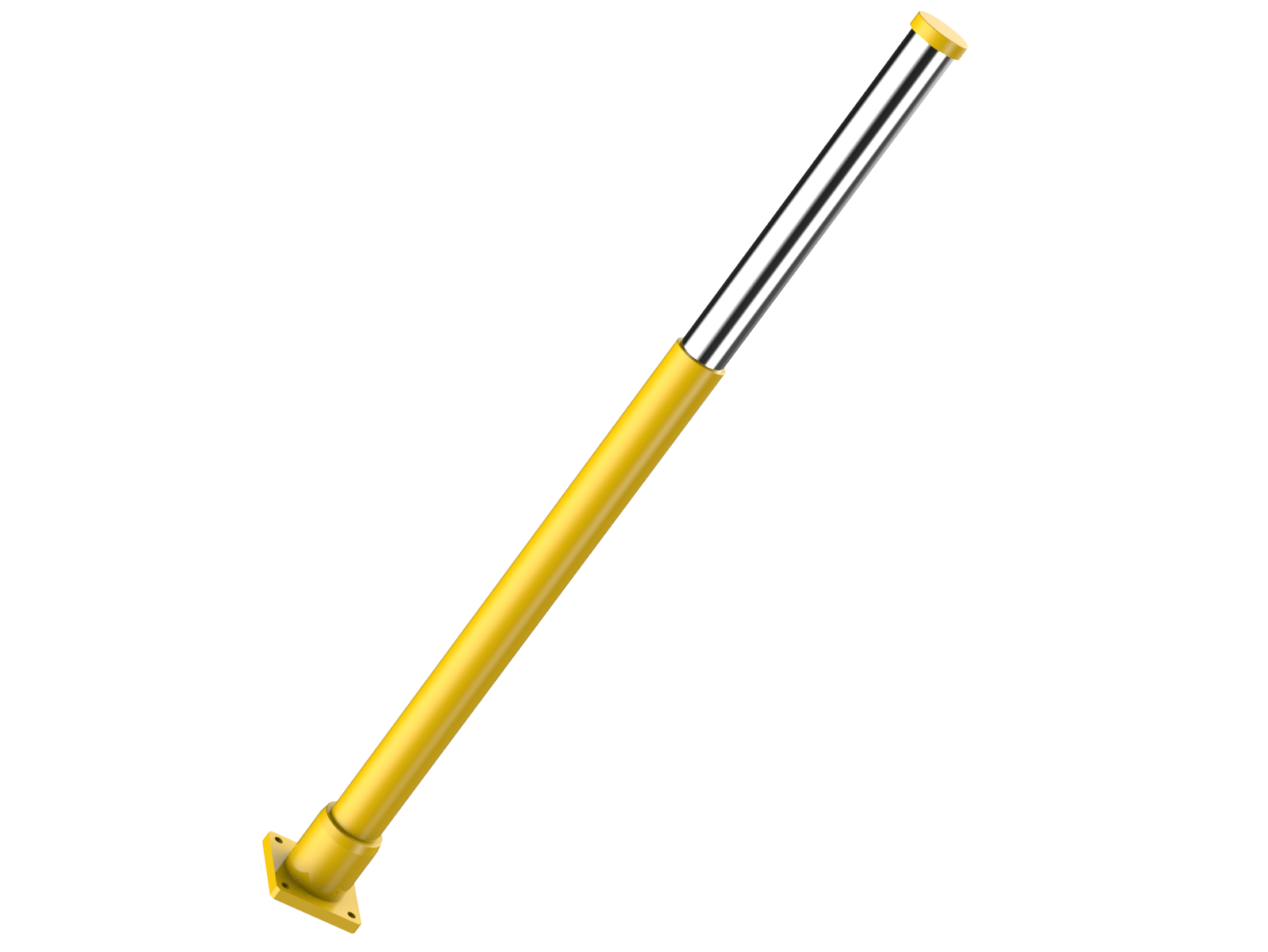

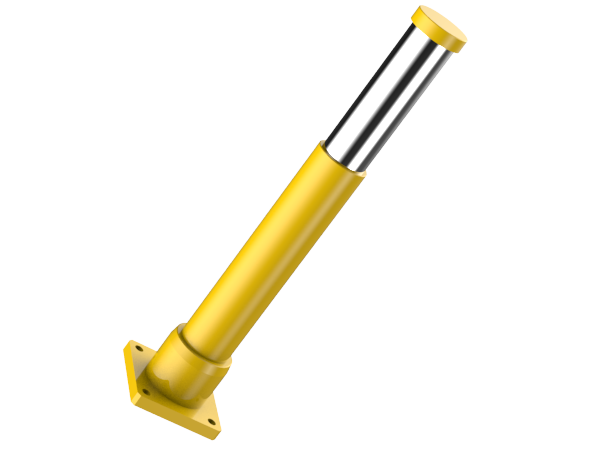

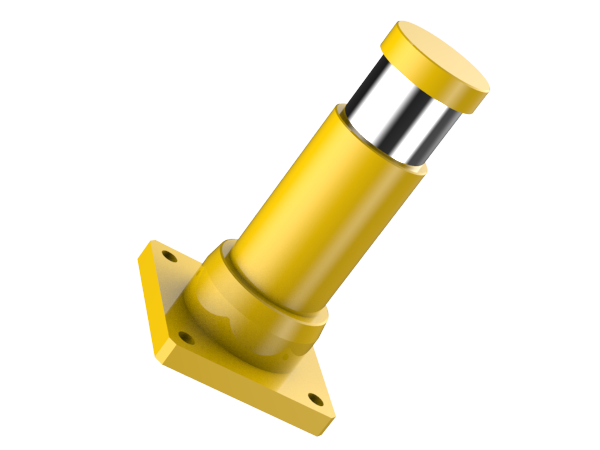

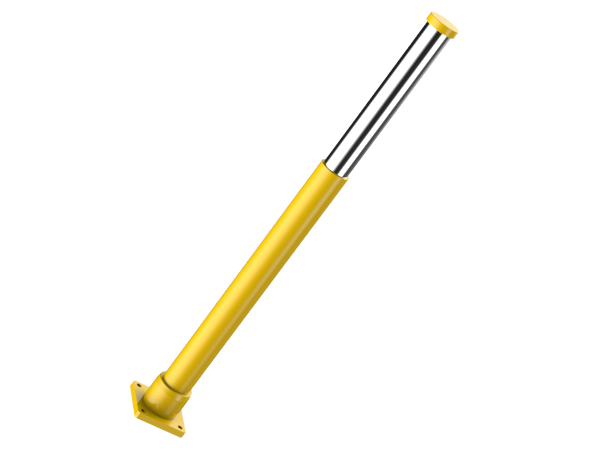

KHG 150 Series
Hydraulic Gas & Oil type Buffer
KHG 150 Series
Hydraulic Gas & Oil type Buffer
Body Thread Size : 150
Stroke : 100, 200, 300, 400, 500, 600, 800, 1000
Body Thread Size : 150
Stroke : 100, 200, 300, 400, 500, 600, 800, 1000
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(KJ)ET |
Max.Buffer Force(kN)Fs |
|---|---|---|---|---|
 |
KHG150-100 | 100 | 70 | 880 |
 |
KHG150-200 | 200 | 136 | 850 |
 |
KHG150-300 | 300 | 183 | 770 |
 |
KHG150-400 | 400 | 243 | 760 |
 |
KHG150-500 | 500 | 297 | 740 |
 |
KHG150-600 | 600 | 323 | 670 |
 |
KHG150-800 | 800 | 448 | 700 |
 |
KHG150-1000 | 1,000 | 550 | 689 |
