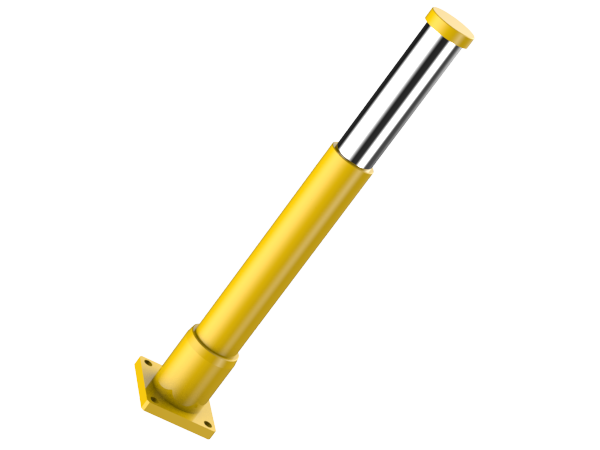

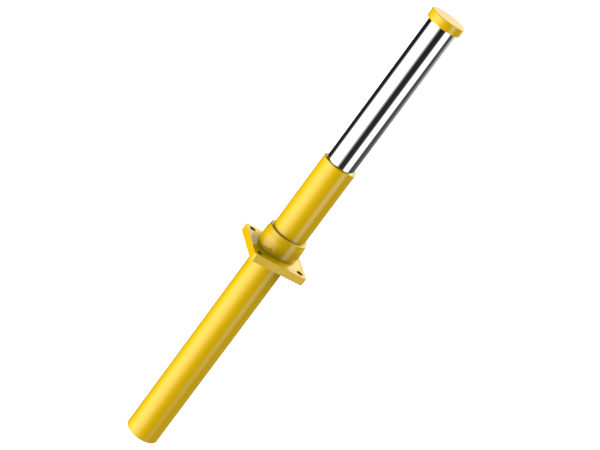

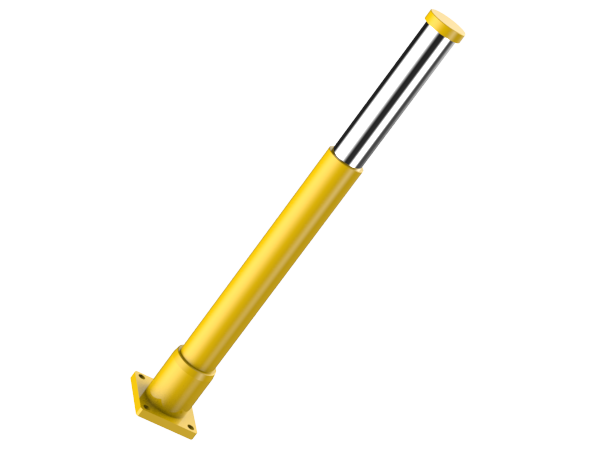

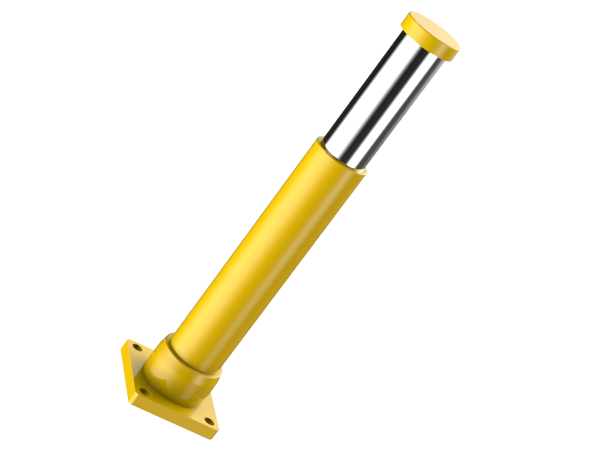

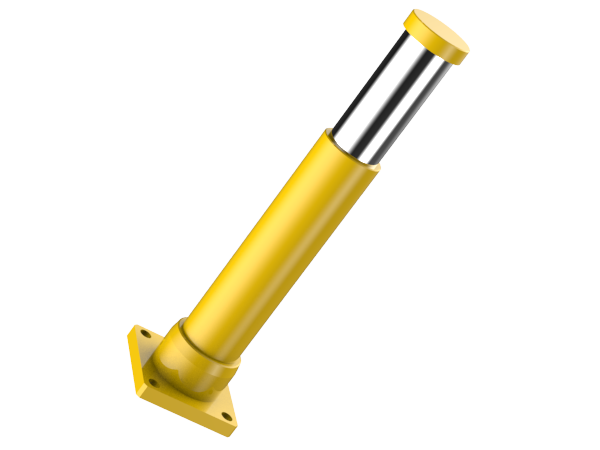

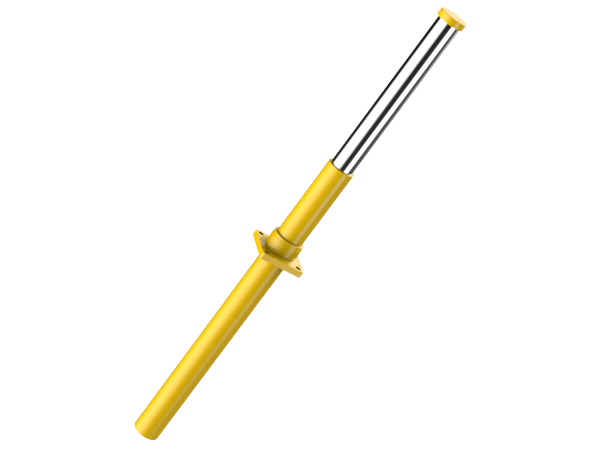

KHG 130 Series
Hydraulic Gas & Oil type Buffer
KHG 130 Series
Hydraulic Gas & Oil type Buffer
Body Thread Size : 130
Stroke : 250, 300, 400, 500, 600, 800
Body Thread Size : 130
Stroke : 250, 300, 400, 500, 600, 800
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(KJ)ET |
Max.Buffer Force(kN)Fs |
|---|---|---|---|---|
 |
KHG130-250 | 250 | 120 | 550 |
 |
KHG130-300 | 300 | 140 | 550 |
 |
KHG130-400 | 400 | 180 | 550 |
 |
KHG130-500 | 500 | 220 | 550 |
 |
KHG130-600 | 600 | 260 | 550 |
 |
KHG130-800 | 800 | 300 | 460 |
