Product Category

Series

Series

Model

Model Stroke
(mm)		 Max.Energy/
Cycle(KJ)ET		 Max.Energy/
Hour(KJ/h)EtC		 Max.Buffer
Force(kN)Fs
KCSC130-50 50 12 767 312
KCSC130-75 75 19 857 312
KCSC130-125 125 31 1,060 312
KCSC130-200 200 50 1,443 312
KCSC130-250 250 62 1,708 312
KCSC130-300 300 75 1,966 312
KCSC130-350 350 87 2,257 312
KCSC130-400 400 100 2,514 312
KCSC130-450 450 112 2,773 312
KCSC130-500 500 122 3,028 306
KCSC130-600 600 147 3,528 306
KCSC130-700 700 178 4,033 318
KCSC130-800 800 195 4,532 305
KCSC130-900 900 208 4,921 289
KCSC130-1000 1,000 228 4,971 284
KCSC130-1200 1,200 244 6,139 255
KCSC130-1400 1,400 254 3,706 226
KCSC130-1500 1,500 267 3,169 222

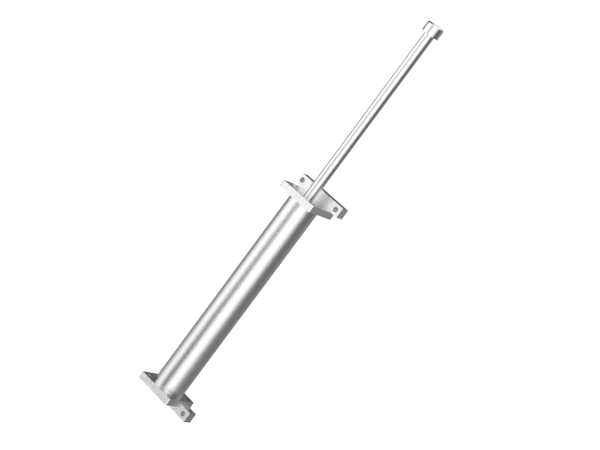

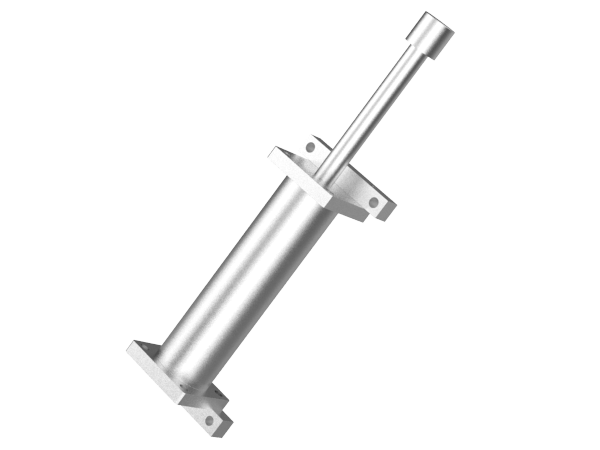

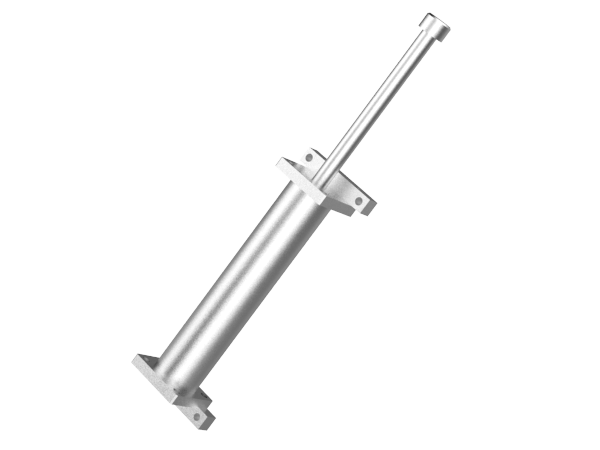

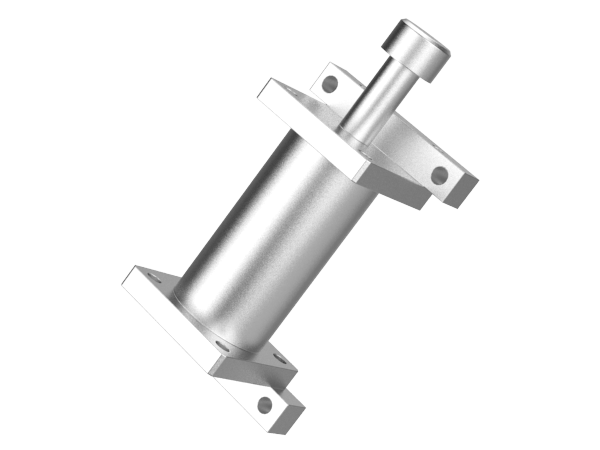

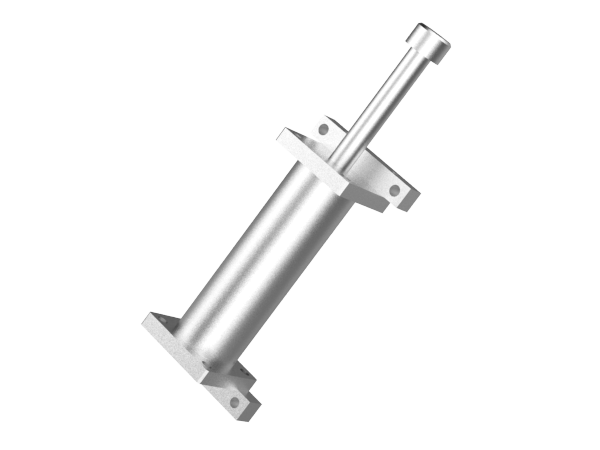

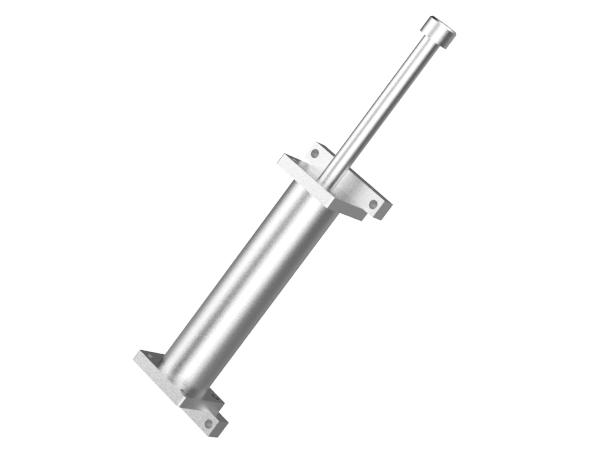

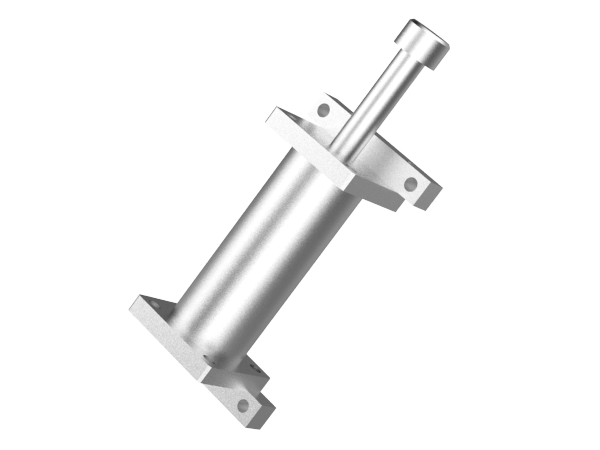

KCSC 130 Series

KCSC Series Stacker Crane Buffer

KCSC 130 Series

Hydraulic Gas & Oil Stacker Crane Adjustable Buffer
Body Thread Size : 130
Stroke : 50, 100, 150, 200, 250, 300
inquiry

Installation Size

Image Model Stroke
(mm)		 Max.Energy/
Cycle(KJ)ET		 Max.Energy/
Hour(KJ/hr)EtC		 Max.Buffer
Force(kN)Fs
KCSC130-50 50 12 767 312
KCSC130-75 75 19 857 312
KCSC130-125 125 31 1,060 312
KCSC130-200 200 50 1,443 312
KCSC130-250 250 62 1,708 312
KCSC130-300 300 75 1,966 312
KCSC130-350 350 87 2,257 312
KCSC130-400 400 100 2,514 312
KCSC130-450 450 112 2,773 312
KCSC130-500 500 122 3,028 306
KCSC130-600 600 147 3,528 306
KCSC130-700 700 178 4,033 318
KCSC130-800 800 195 4,532 305
KCSC130-900 900 208 4,921 289
KCSC130-1000 1,000 228 4,971 284
KCSC130-1200 1,200 244 6,139 255
KCSC130-1400 1,400 254 3,706 226
KCSC130-1500 1,500 267 3,169 222
