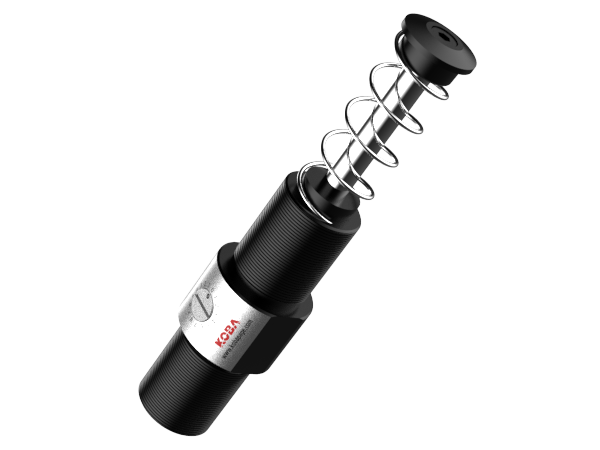

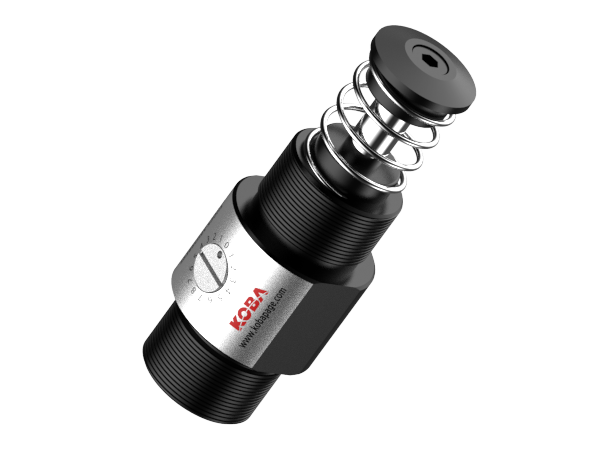

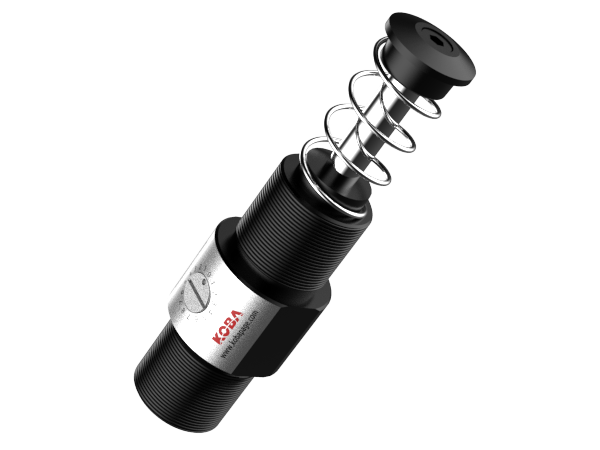

KHA 42 Series
KHA Heavy type Absorber
KHA 42 Series
Heavy type Absorber
Body Thread Size : 42
Stroke : 25, 50, 75
Body Thread Size : 42
Stroke : 25, 50, 75
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
 |
KHA42-25 | 25 | 250 | 125,000 | 36 - 3,600 | M42X1.5P |
 |
KHA42-25LV | 25 | 250 | 125,000 | 395 - 52,000 | M42X1.5P |
 |
KHA42-50 | 50 | 500 | 166,000 | 45 - 6,150 | M42X1.5P |
 |
KHA42-50LV | 50 | 500 | 166,000 | 591 - 104,000 | M42X1.5P |
 |
KHA42-75 | 75 | 750 | 200,000 | 54 - 9,500 | M42X1.5P |
 |
KHA42-75LV | 75 | 750 | 200,000 | 887 - 156,000 | M42X1.5P |
