Product Category

Series

Series

Model

Model Stroke
(mm)		 Max.Energy/
Cycle(Nm)ET		 Max.Energy/
Hour(Nm/h)EtC		 Effctive
Weight(kg)		 M
KHA85-50 50 2,300 370,000 200 - 37,000 M85X2.0P
KHA85-90 90 4,000 650,000 230 - 40,000 M85X2.0P
KHA85-125 125 5,700 930,000 300 - 43,000 M85X2.0P
KHA85-165 165 7,300 1,210,000 360 - 45,000 M85X2.0P

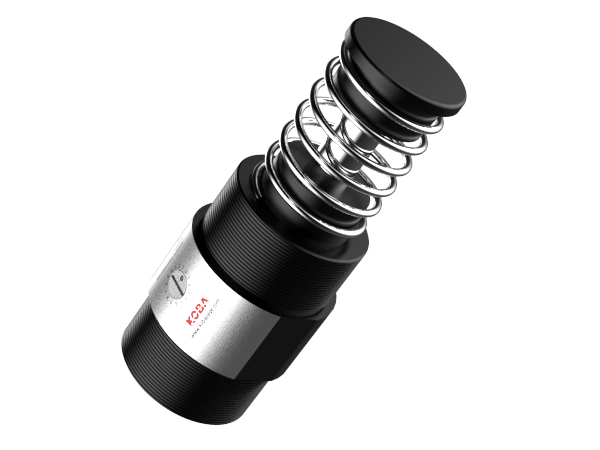

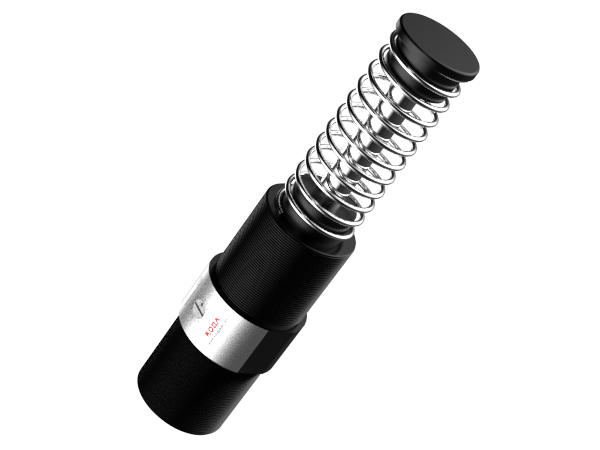

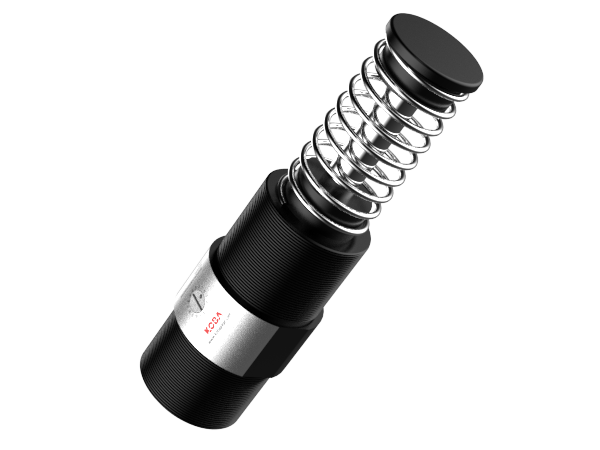

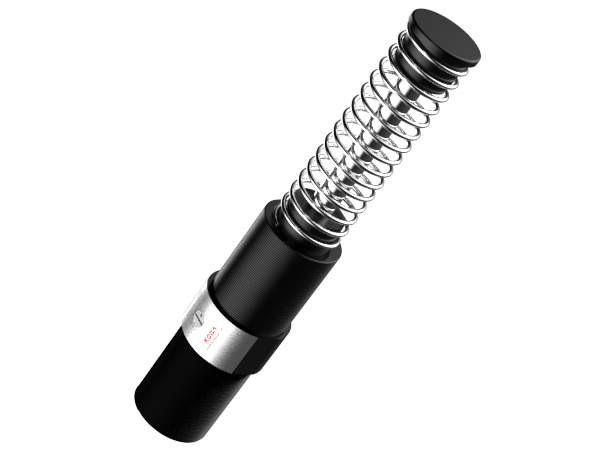

KHA 85 Series

KHA Heavy type Absorber

KHA 85 Series

Heavy type Absorber
Body Thread Size : 85
Stroke : 50, 90, 125, 165
inquiry

Installation Size

Image Model Stroke
(mm)		 Max.Energy/
Cycle(Nm)ET		 Max.Energy/
Hour(Nm/h)EtC		 Effctive
Weight(kg)		 M
KHA85-50 50 2,300 370,000 200 - 37,000 M85X2.0P
KHA85-90 90 4,000 650,000 230 - 40,000 M85X2.0P
KHA85-125 125 5,700 930,000 300 - 43,000 M85X2.0P
KHA85-165 165 7,300 1,210,000 360 - 45,000 M85X2.0P
