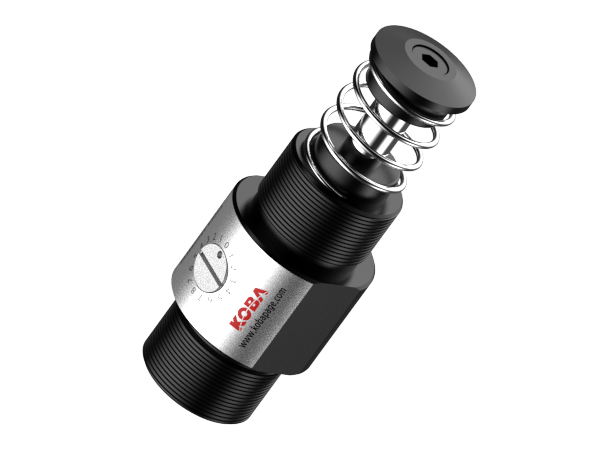

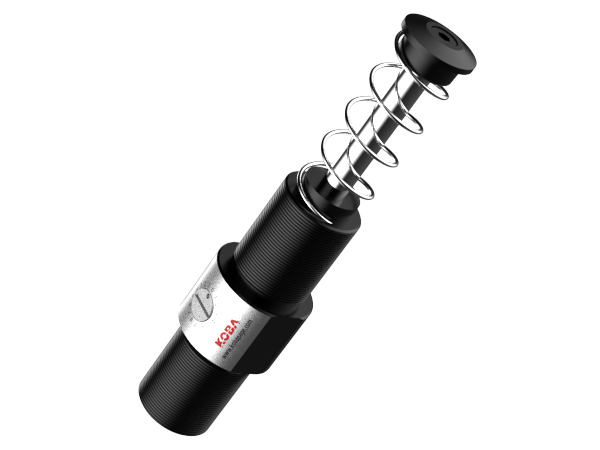

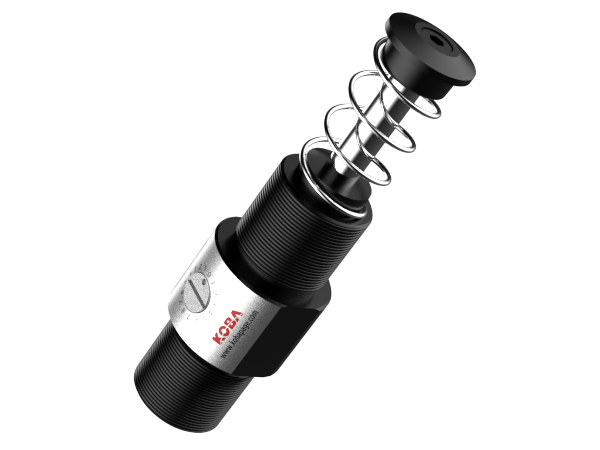

KHAT 42 Series
KHA Heavy type Absorber
KHAT 42 Series
Heavy type Absorber
Body Thread Size : 42
Stroke : 25, 50, 75
Body Thread Size : 42
Stroke : 25, 50, 75
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
 |
KHAT42-25 | 25 | 425 | 125,000 | 70 - 9,400 | M42X1.5P |
 |
KHAT42-25LV | 25 | 425 | 125,000 | 502 - 132,812 | M42X1.5P |
 |
KHAT42-50 | 50 | 850 | 166,000 | 138 - 188,000 | M42X1.5P |
 |
KHAT42-50LV | 50 | 850 | 166,000 | 1,300 - 265,000 | M42X1.5P |
 |
KHAT42-75 | 75 | 1,300 | 200,000 | 212 - 29,000 | M42X1.5P |
 |
KHAT42-75LV | 75 | 1,300 | 200,000 | 1,500 - 406,000 | M42X1.5P |
