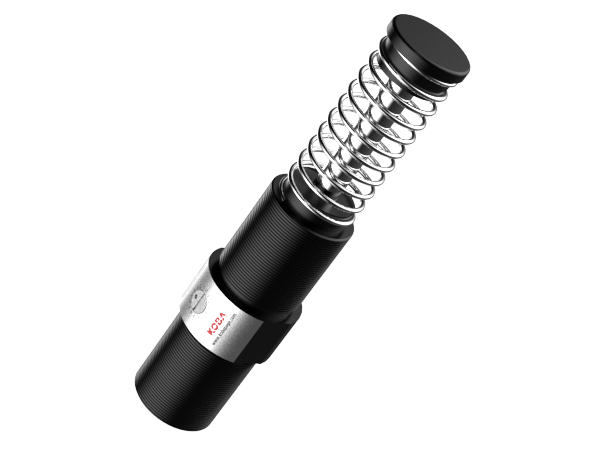

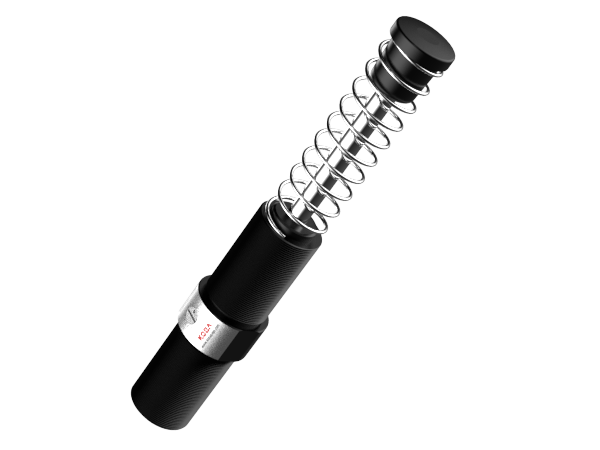

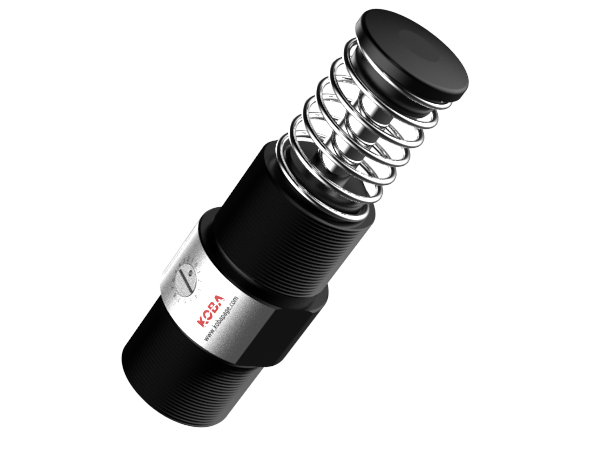

KHA 64 Series
KHA Heavy type Absorber
KHA 64 Series
Heavy type Absorber
Body Thread Size : 64
Stroke : 50, 100, 150
Body Thread Size : 64
Stroke : 50, 100, 150
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
 |
KHA64-50 | 50 | 1,300 | 270,000 | 82 - 12,600 | M64X2.0P |
 |
KHA64-50LV | 50 | 1,300 | 270,000 | 4,062.5 - 227,500 | M64X2.0P |
 |
KHA64-100 | 100 | 2,600 | 360,000 | 115 - 17,000 | M64X2.0P |
 |
KHA64-100LV | 100 | 2,600 | 360,000 | 8,125 - 555,000 | M64X2.0P |
 |
KHA64-150 | 150 | 3,900 | 420,000 | 140 - 22,000 | M64X2.0P |
 |
KHA64-150LV | 150 | 3,900 | 420,000 | 12,187.5 - 832,500 | M64X2.0P |
