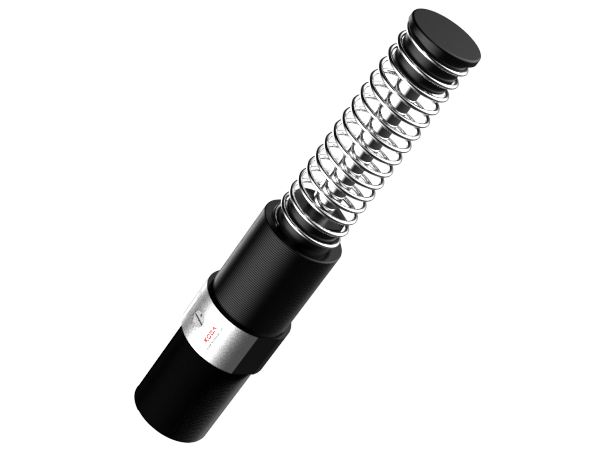

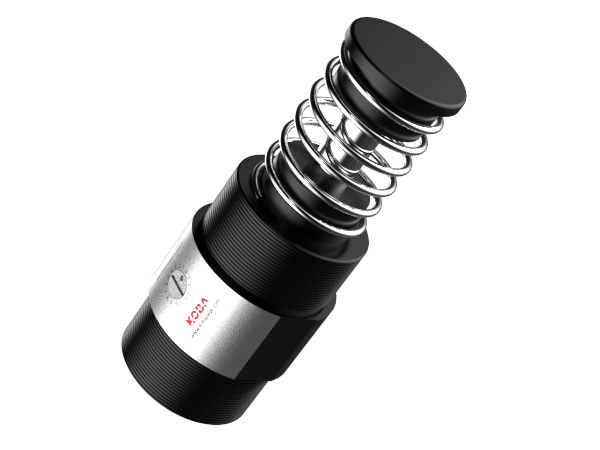

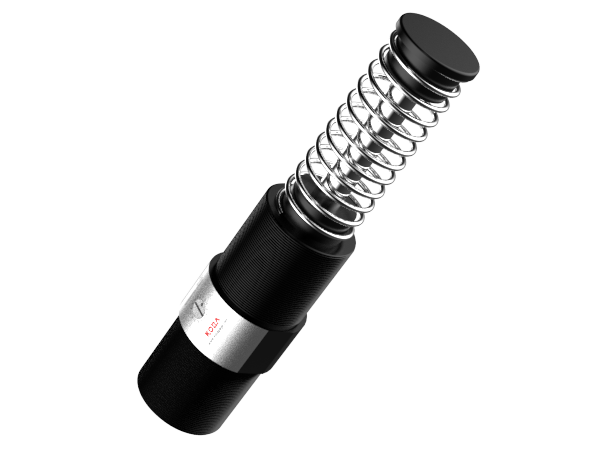

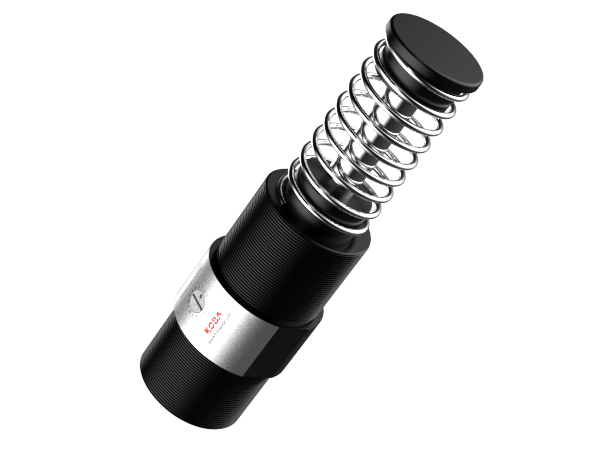

KHAT 85 Series
KHA Heavy type Absorber
KHAT 85 Series
Heavy type Absorber
Body Thread Size : 85
Stroke : 50, 90, 125, 165
Body Thread Size : 85
Stroke : 50, 90, 125, 165
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
 |
KHAT85-50 | 50 | 2,300 | 370,000 | 250 - 51,000 | M85X2.0P |
 |
KHAT85-90 | 90 | 4,000 | 650,000 | 432 - 89,000 | M85X2.0P |
 |
KHAT85-125 | 125 | 5,700 | 930,000 | 616 - 126,000 | M85X2.0P |
 |
KHAT85-165 | 165 | 7,300 | 1,210,000 | 790 - 162,000 | M85X2.0P |
