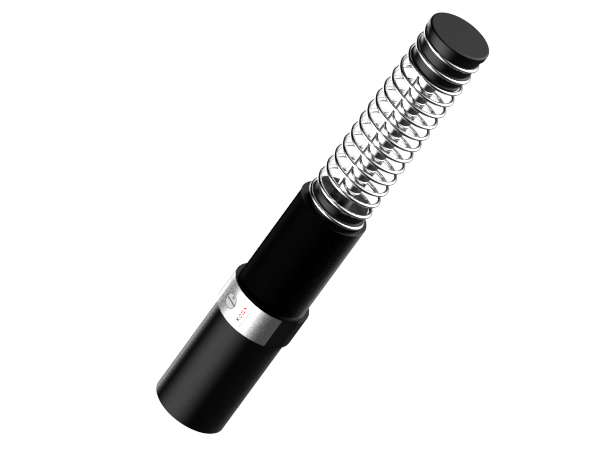

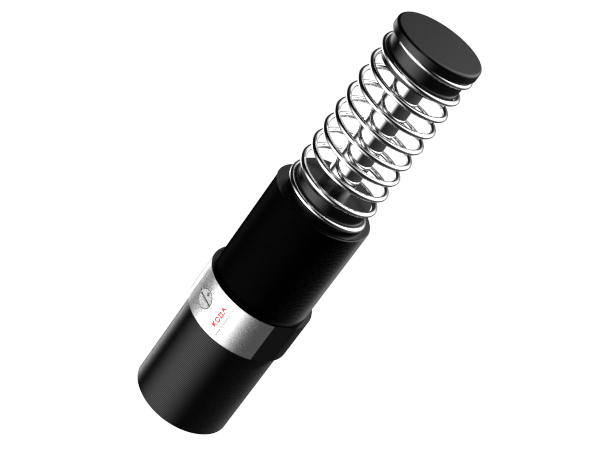

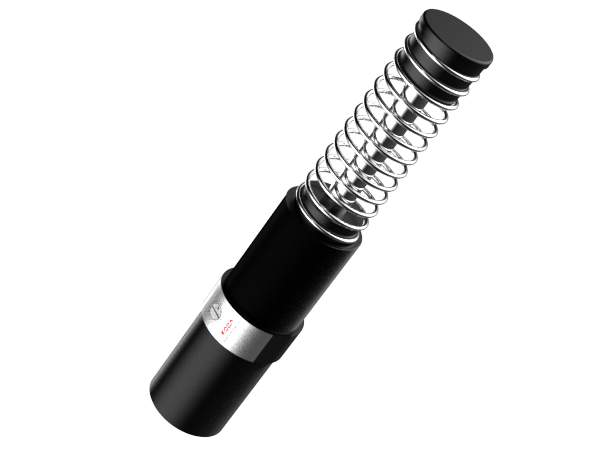

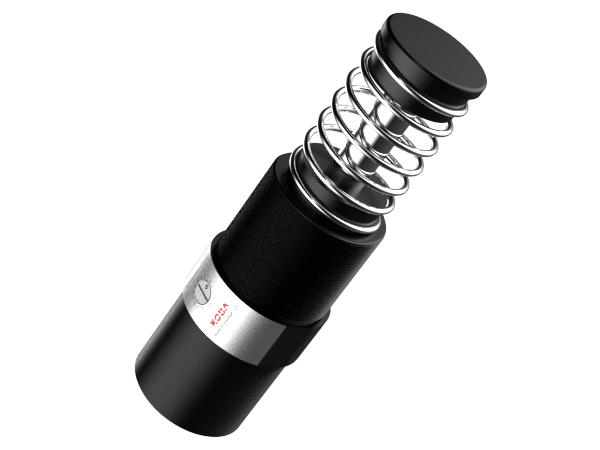

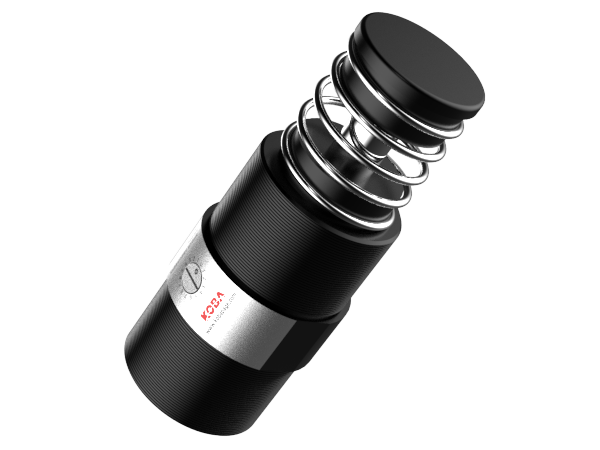

KHA 115 Series
KHA Heavy type Absorber
KHA 115 Series
Heavy type Absorber
Body Thread Size : 115
Stroke : 50, 100, 150, 200, 250
Body Thread Size : 115
Stroke : 50, 100, 150, 200, 250
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
 |
KHA115-50 | 50 | 3,700 | 1,501,000 | 370 - 44,000 | M115X2.0P |
 |
KHA115-100 | 100 | 7,400 | 1,805,000 | 370 - 57,000 | M115X2.0P |
 |
KHA115-150 | 150 | 11,100 | 2,100,000 | 370 - 89,000 | M115X2.0P |
 |
KHA115-200 | 200 | 14,800 | 2,405,000 | 390 - 118,000 | M115X2.0P |
 |
KHA115-250 | 250 | 18,500 | 2,710,000 | 440 - 145,000 | M115X2.0P |
