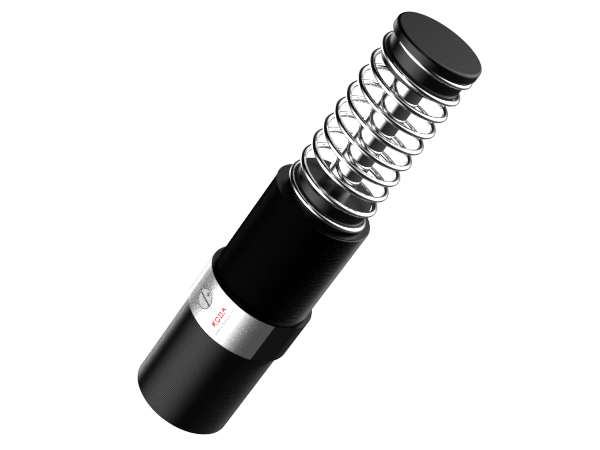

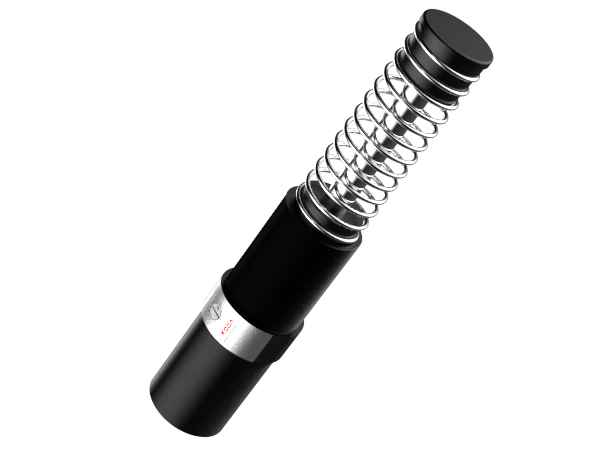

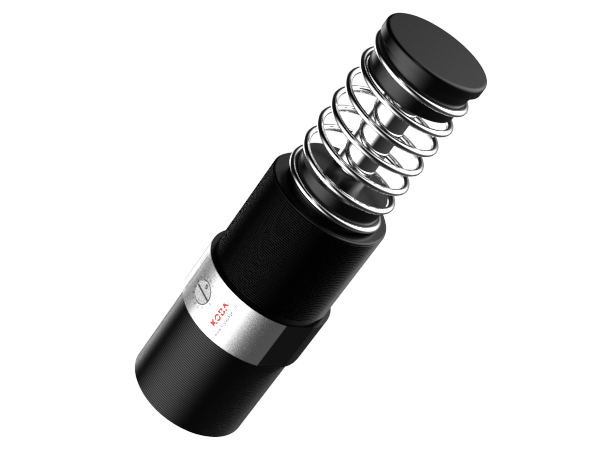

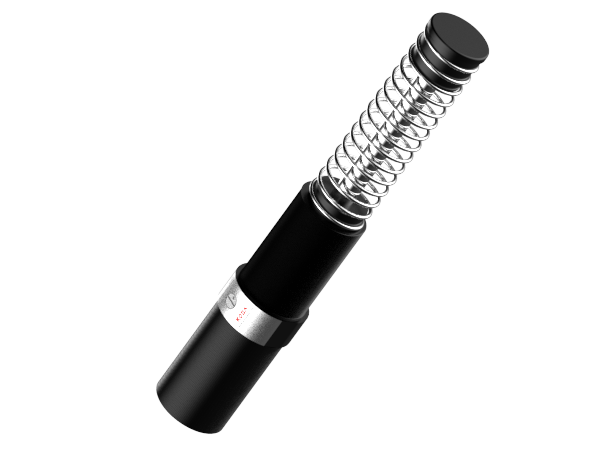

KHAT 115 Series
KHA Heavy type Absorber
KHAT 115 Series
Heavy type Absorber
Body Thread Size : 115
Stroke : 50, 100, 150, 200, 250
Body Thread Size : 115
Stroke : 50, 100, 150, 200, 250
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
 |
KHAT115-100 | 100 | 7,700 | 1,808,000 | 832 - 171,000 | M115X2.0P |
 |
KHAT115-150 | 150 | 11,500 | 2,102,000 | 1,200 - 255,000 | M115X2.0P |
 |
KHAT115-200 | 200 | 15,400 | 2,405,000 | 1,600 - 342,000 | M115X2.0P |
 |
KHAT115-250 | 250 | 19,200 | 2,710,000 | 2,100 - 427,000 | M115X2.0P |
